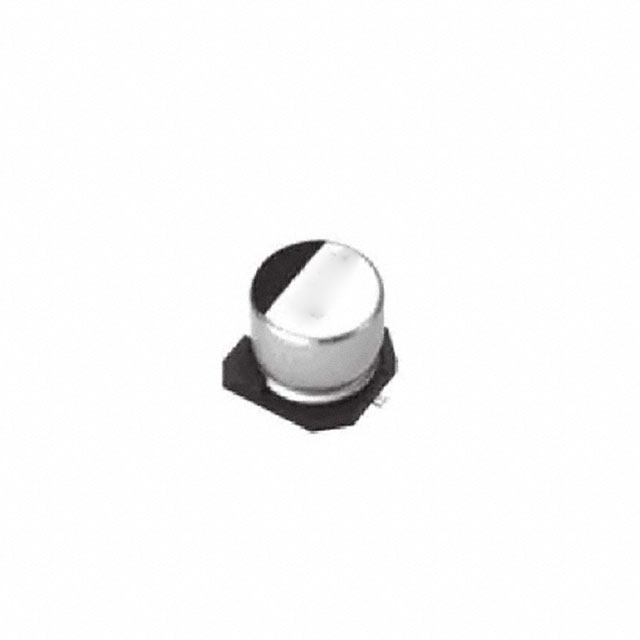

VE-220M1CTR-0405S

VE-220M1CTR-0405S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists SURGE. Its product description is CAP ALUM 22UF 20% 16V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for VE-220M1CTR-0405S

• Description：CAP ALUM 22UF 20% 16V SMD
• Series：VE
• Mfr：SURGE
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：22 µF
• Tolerance：±20%
• Voltage - Rated：16 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：30 mA @ 120 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：-
• Size / Dimension：0.157" Dia (4.00mm)
• Height - Seated (Max)：0.217" (5.50mm)
• Surface Mount Land Size：0.169" L x 0.169" W (4.30mm x 4.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for VE-220M1CTR-0405S
