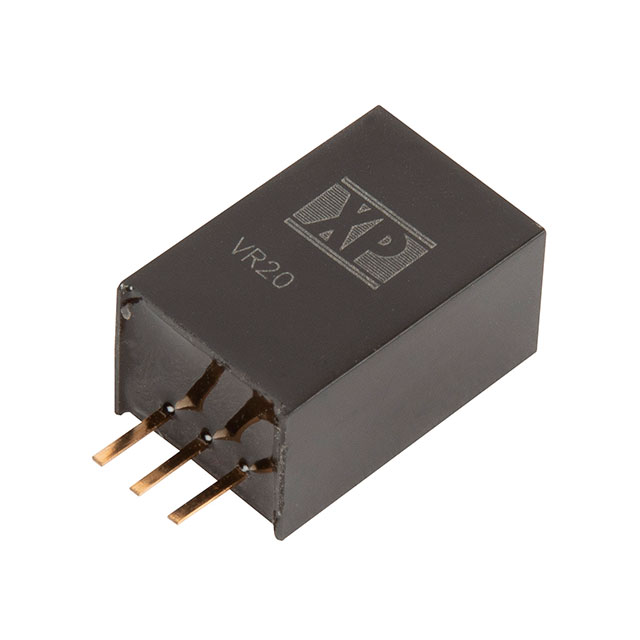

VR20S2V5

VR20S2V5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is IC REG SW DC DC CONV 2.5V 2A SIP. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VR20S2V5

• Description：IC REG SW DC DC CONV 2.5V 2A SIP
• Series：VR20
• Mfr：XP Power
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：36V
• Voltage - Output 1：2.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for VR20S2V5
