WLED5C12WHI

LED Indication - Discrete Overview

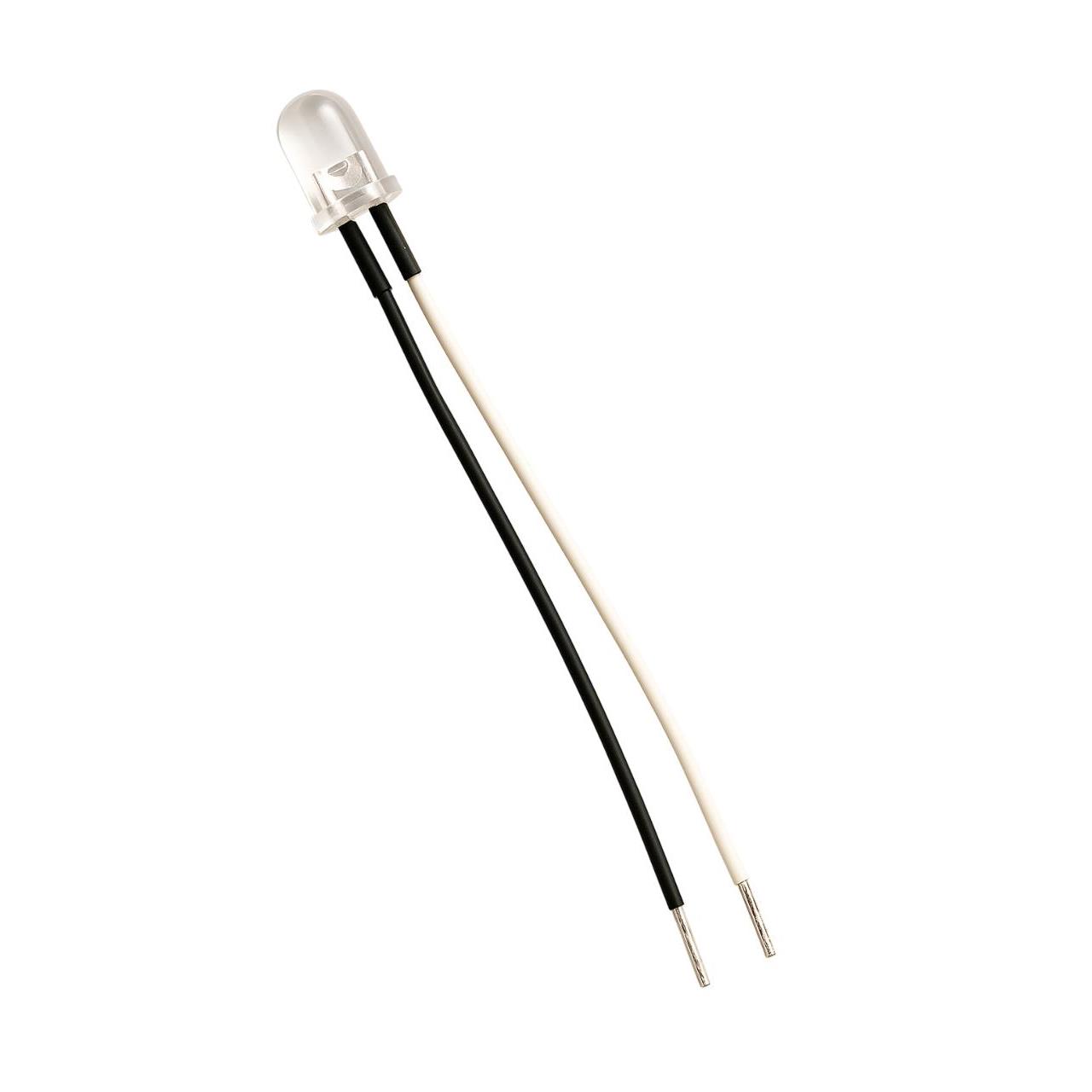

The WLED5C12WHI is a discrete white light-emitting diode manufactured by Lumimax Optoelectronic Technology. It is designed for indication applications and operates at a nominal voltage of 12V. The component emits white light with a correlated color temperature ranging from 6000K to 9000K. This part is available in a standard discrete package format suitable for through-hole or surface-mount integration depending on the specific lead configuration, serving as a direct replacement or primary source for high-color-temperature white illumination needs.

LED Indication - Discrete Feature Summary

• Provides stable white light emission within a specified color temperature range
• Engineered for reliable operation at a 12V nominal drive voltage
• Designed specifically for visual indication functions in electronic assemblies

LED Indication - Discrete Applications

• Status indication on control panels and operator interfaces
• Power supply status signaling in industrial equipment
• Visual feedback components in consumer electronics devices

LED Indication - Discrete Procurement Notes

Verify the exact physical dimensions and lead configuration against the official datasheet before integration, as discrete LED packages can vary significantly between manufacturers. Confirm that the 12V rating aligns with your circuit design, as this component may require specific current-limiting resistors to operate safely within its electrical limits. Ensure the supplier provides the complete technical documentation package to validate compliance with your project specifications.

LED Indication - Discrete Selection Notes

Select this component when a bright white indication light with a cool color tone is required. The 12V rating suggests compatibility with higher-voltage logic or power rails, potentially simplifying driver circuitry compared to lower-voltage LEDs. Consider the 6000K to 9000K color temperature range if a crisp, daylight-like appearance is necessary for visibility in well-lit environments.

LED Indication - Discrete Part Context

Lumimax Optoelectronic Technology produces a range of optoelectronic components including LEDs, TVS diodes, and lighting fixtures. The WLED5C12WHI belongs to their discrete LED lineup, focusing on standard indication applications. The company emphasizes competitive pricing and custom design capabilities alongside standard parts for general-purpose use.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 12V rating, 6000K-9000K color temperature, and physical package dimensions with alternative discrete white LEDs from other manufacturers.
