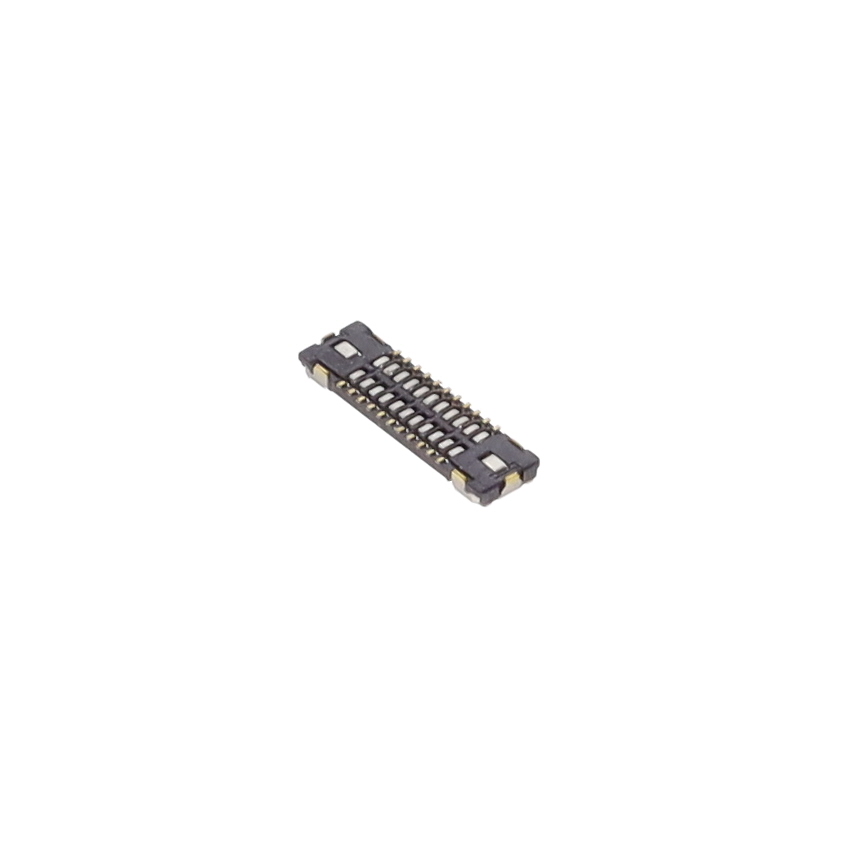

Arrays, Edge Type, Mezzanine (Board To Board) WP55DK-S022VA1-R20000 product image

WP55DK-S022VA1-R20000

$0.92

Description：CONN RCPT 22 POS 0.3MM PITCH SMD
Series：WP55DK
Mfr：JAE Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:80f43902cda0 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WP55DK-S022VA1-R20000 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN RCPT 22 POS 0.3MM PITCH SMD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for WP55DK-S022VA1-R20000

Description：CONN RCPT 22 POS 0.3MM PITCH SMD
Series：WP55DK
Mfr：JAE Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：22
Pitch：0.012" (0.30mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：-
Mated Stacking Heights：-
Height Above Board：0.020" (0.50mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for WP55DK-S022VA1-R20000

WP55DK-S022VA1-R20000
