WP63SURDK

LED Indication - Discrete Overview

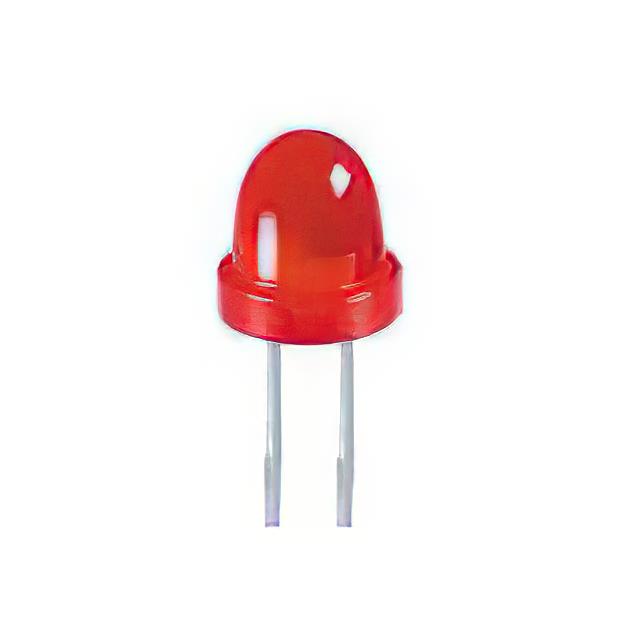

The Kingbright WP63SURDK is a single-color red light-emitting diode belonging to the WP63 series. It features a T-1 3/4 (5mm) radial through-hole package with a diffused red lens. The component emits light at a peak wavelength of 627nm and has a typical forward voltage of 2V. Key electrical parameters include a maximum forward current of 30mA, a power dissipation rating of 75mW, and a viewing angle of 60 degrees.

LED Indication - Discrete Feature Summary

• Utilizes a T-1 3/4 cylindrical package design for standard mounting applications
• Features a diffused lens surface to provide wide-angle light distribution
• Constructed with a red epoxy resin lens material

LED Indication - Discrete Applications

• General purpose indicator lighting in electronic equipment
• Panel status indication for control interfaces
• Visual signaling in consumer appliances

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'SURDK' against the manufacturer datasheet to confirm the exact lens diffusion and color specifications. Ensure that the procurement documentation matches the T-1 3/4 form factor and radial lead configuration required for the target PCB layout. Cross-reference RoHS compliance status if environmental regulations apply to the end product assembly process.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm through-hole LED with a 60-degree viewing angle is required. The 2V forward voltage drop suits low-voltage logic circuits without excessive heat generation. The 75mW power rating provides adequate thermal headroom for continuous operation in standard ambient conditions compared to higher-power alternatives.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP63 family of single-color LEDs. The series is characterized by its robust T-1 3/4 plastic housing and radial lead arrangement. It serves as a fundamental discrete optical component within the broader Kingbright portfolio of general-purpose lighting solutions.

LED Indication - Discrete Replacement Considerations

WP63ID

LED Indication - Discrete FAQ

What is the peak emission wavelength?

The peak wavelength is 627nm.

Does this LED have a clear or diffused lens?

It features a diffused lens surface.
