X1R052000B81HZ-DEHPZ

Crystals Overview

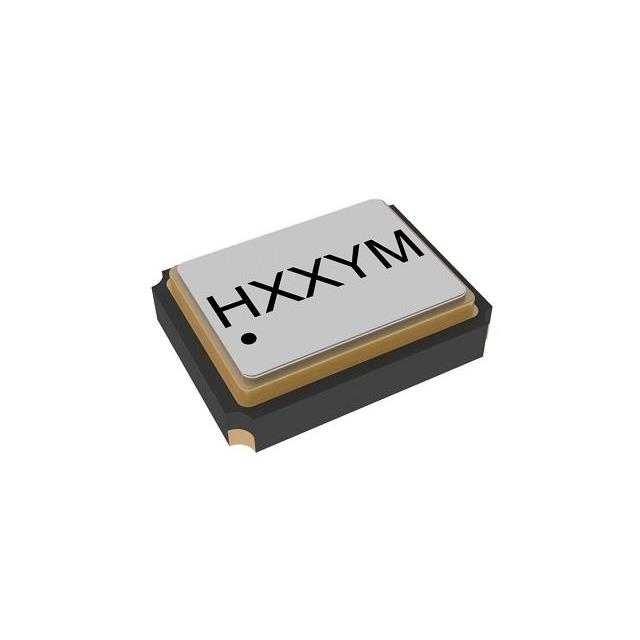

The X1R052000B81HZ-DEHPZ is a 52 MHz quartz crystal resonator manufactured by Harmony Electronics Corp. It features an 8 pF load capacitance and a frequency tolerance of ±10 ppm. The component operates within a temperature range of -40°C to +105°C. It utilizes the HSX111SR package configuration.

Crystals Feature Summary

• Provides stable frequency generation at 52 MHz with high precision
• Designed for wide industrial temperature operation up to 105°C
• Compact surface-mount form factor for automated assembly

Crystals Applications

• Microcontroller clock sources
• Communication interface timing circuits
• Industrial control system oscillators

Crystals Procurement Notes

Verify RoHS compliance status as documentation indicates non-compliance. Confirm exact package dimensions against the official datasheet before integration. Ensure supply chain authenticity through authorized channels due to active lifecycle status.

Crystals Selection Notes

Select this component when a 52 MHz reference is required with ±10 ppm stability. The wide temperature range suits harsh environments. Verify load capacitance matches circuit design requirements for accurate frequency tuning.

Crystals Part Context

Harmony Electronics Corp specializes in quartz frequency components since 1976. This part belongs to their crystal resonator line, distinct from oscillator products. The manufacturer maintains global operations including Taiwan, Thailand, and Shenzhen facilities.

Crystals Replacement Considerations

No public substitute part numbers are documented for this specific model. Cross-reference only with identical specifications from authorized distributors.
