X2B016000BA1H-U

Crystals Overview

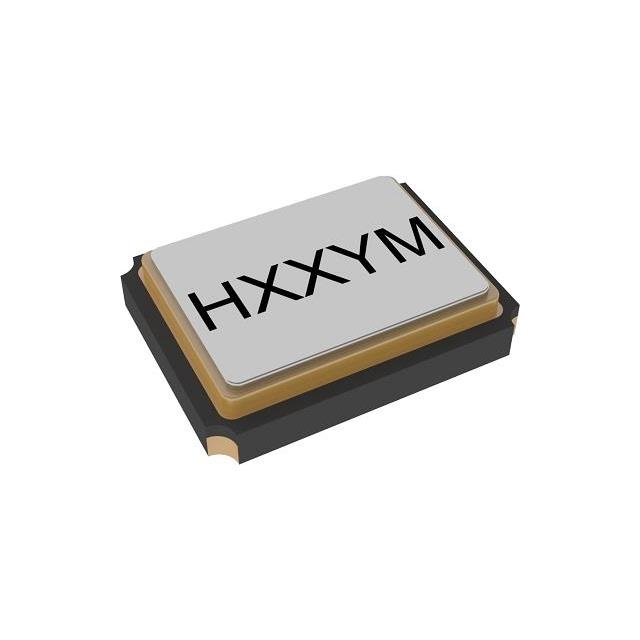

The X2B016000BA1H-U is a MHz crystal manufactured by Harmony Electronics Corp. It operates at a frequency of 16 MHz with a frequency tolerance of ±10ppm and stability of ±20ppm. The component features a load capacitance of 10pF and an equivalent series resistance (ESR) of 120 Ohms. It utilizes the HSX221SA series design in a 4-SMD, No Lead package measuring 2.50mm x 2.00mm. The device supports surface mount installation and functions in fundamental mode across a temperature range of -40°C to 85°C.

Crystals Feature Summary

• Compact 4-SMD no-lead surface mount package for automated assembly
• Fundamental oscillation mode operation
• Compliance with RoHS3 specifications

Crystals Applications

• General electronic circuit timing references
• Microcontroller clock sources
• Communication module frequency standards

Crystals Procurement Notes

Verify the specific manufacturer part number against official Harmony Electronics Corp documentation to ensure accuracy. Confirm that the required frequency tolerance and load capacitance match the system design requirements. Check for any specific handling instructions related to the 4-SMD no-lead package during soldering processes. Ensure compliance with environmental regulations such as RoHS3 if applicable to the final product.

Crystals Selection Notes

Select this component when a 16 MHz fundamental crystal is required in a compact 2.50mm x 2.00mm footprint. Consider the ±10ppm initial tolerance and ±20ppm total stability for applications requiring moderate precision. The 10pF load capacitance must align with the oscillator circuit's capacitive load requirements. Evaluate the ESR of 120 Ohms against the driver strength of the host circuit to ensure reliable startup.

Crystals Part Context

This component belongs to the HSX221SA series of quartz crystals from Harmony Electronics Corp. The series is designed for surface mount applications, offering a balance between size and performance. The manufacturer specializes in quartz frequency components, providing various packages and frequencies for diverse electronic needs. This specific model represents a standard frequency option within their portfolio.

Crystals Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
