XZDG81FS

LED Indication - Discrete Overview

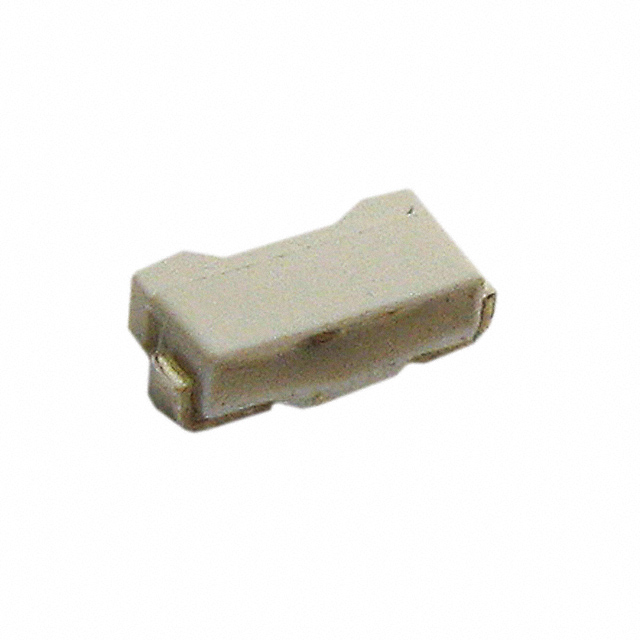

The XZDG81FS is a green surface-mount LED manufactured by SunLED, designed for discrete indication applications. It features a clear lens with a rectangular shape and flat top, emitting light at a dominant wavelength of 525nm and a peak wavelength of 515nm. The component operates with a typical forward voltage of 3.3V at a test current of 20mA, producing an intensity of 695mcd. It utilizes a 2-SMD J-lead package measuring 2.80mm in length, 1.20mm in width, and 0.80mm in maximum height, offering a viewing angle of 110 degrees.

LED Indication - Discrete Feature Summary

• Provides high-intensity green indication with a wide 110-degree viewing angle for enhanced visibility.
• Utilizes a compact right-angle SMD footprint with J-leads to facilitate dense circuit board mounting.
• Features a water-clear lens with a rectangular flat-top design to optimize light distribution.

LED Indication - Discrete Applications

• Status indication on handheld electronic devices
• Power and operational status indicators on consumer electronics
• Panel indicator lights for control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm RoHS compliance status and moisture sensitivity level requirements against project specifications before finalizing procurement orders to prevent handling issues during assembly.

LED Indication - Discrete Selection Notes

Select this component when a right-angle surface mount configuration is required for space-constrained designs. Ensure the driving circuit can support the 3.3V forward voltage drop at 20mA. Consider the 110-degree viewing angle for visibility requirements and verify that the 2.80mm x 1.20mm footprint fits within the available PCB area.

LED Indication - Discrete Part Context

This part belongs to the SunLED XZDG series of single-color surface-mount LEDs. It is engineered for general-purpose indication tasks where reliability and consistent optical performance are prioritized. The product line emphasizes robust packaging suitable for automated pick-and-place assembly processes in modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers include AA2810AZGSK from Kingbright and LT Y1SG-BACB-35-1-20-R18-Z from ams OSRAM AG. Verify pinout orientation and mechanical dimensions before substitution to ensure proper fit and function.
