XZDGK55W-3

LED Indication - Discrete Overview

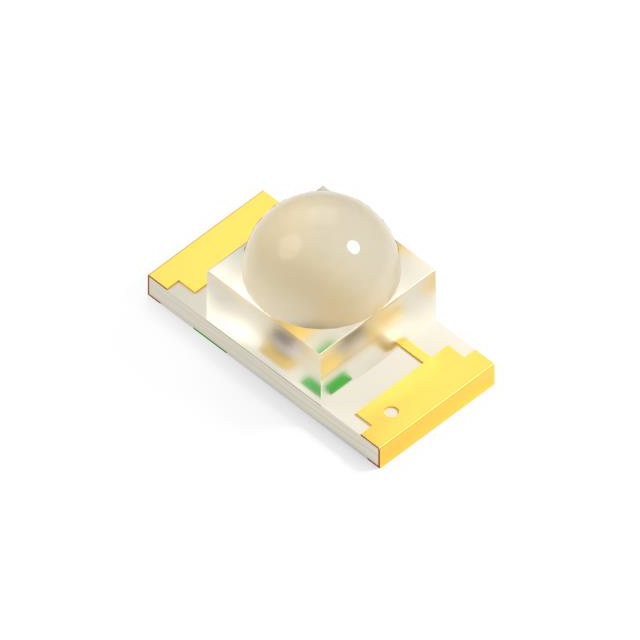

The XZDGK55W-3 is a single-color green surface-mount LED manufactured by SunLED. It features a clear lens with a peak wavelength of 515nm and a nominal luminous intensity of 2090mcd. The device operates at a typical forward voltage of 3.3V with a test current of 20mA. It utilizes a 1206 (3216 metric) package measuring 3.20mm in length, 1.60mm in width, and 1.80mm in maximum height. The component offers a viewing angle of 35 degrees and is designed for standard surface mount installation.

LED Indication - Discrete Feature Summary

• High-intensity green light emission with a peak wavelength of 515nm
• Clear dome lens design for optimized light distribution
• Standard 1206 surface-mount footprint for compact circuit integration

LED Indication - Discrete Applications

• General electronic status indication
• Panel indicator lights
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm that the selected variant matches the intended thermal management requirements and moisture sensitivity level specifications for the assembly process. Cross-reference the manufacturer part number with distributor databases to validate authenticity and current production status before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a high-brightness green indicator is required within a constrained 1206 footprint. Consider the 3.3V forward voltage drop for appropriate driver circuit design. Evaluate the 35-degree viewing angle against visibility requirements. Ensure the operating temperature range of -40°C to 85°C aligns with the environmental conditions of the target application.

LED Indication - Discrete Part Context

This component belongs to the SunLED SMD LED portfolio, characterized by standardized metric footprints and consistent electrical parameters. It serves as a discrete optical signaling element within broader lighting and display systems. The product line emphasizes reliability and compliance with international environmental standards for electronic components.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 1206 green LEDs from SunLED such as XZDGK55W-A2RT or XZDGK55W-3RT, provided the lens style and mounting orientation match the design constraints. Verify equivalent luminous intensity and forward voltage characteristics to maintain circuit performance.
