XZDGK55W-A2RT

LED Indication - Discrete Overview

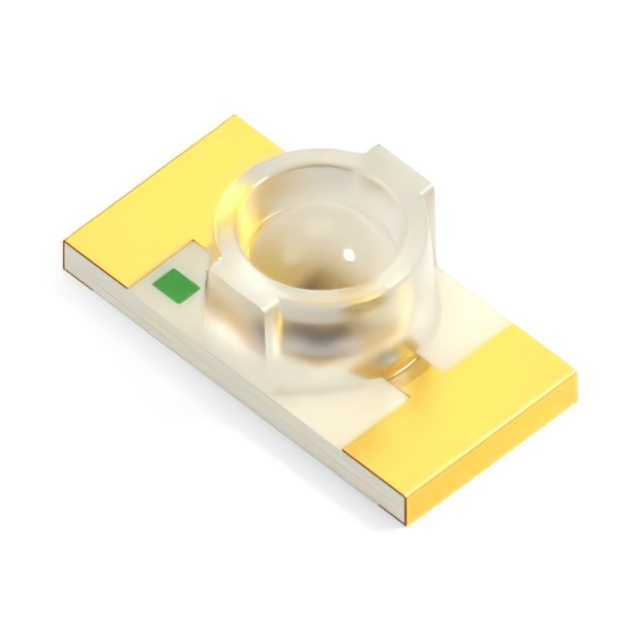

The XZDGK55W-A2RT is a single-color green surface-mount LED manufactured by SunLED. It features a water clear lens and operates at a peak wavelength of 515 nm with a dominant wavelength of 525 nm. The component has a typical forward voltage of 3.3 V and a nominal luminous intensity of 995 mcd. It is housed in a 1206 (3216 Metric) package with dimensions of 3.20 mm length by 1.60 mm width and a maximum height of 1.20 mm. The device supports a viewing angle of 70 degrees and is supplied in tape and reel packaging.

LED Indication - Discrete Feature Summary

• Features an inner dome lens design for enhanced light emission characteristics.
• Constructed with a reverse-mount configuration to optimize thermal performance.
• Complies with RoHS3 standards for environmental safety.

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Status indication on circuit boards
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the reverse-mount variant and packaging type. Ensure compatibility with standard reflow soldering profiles for surface mount assembly. Confirm that the selected part number matches the required green wavelength specifications for the intended optical application.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity green indicator is required in a compact 1206 footprint. The reverse-mount design offers advantages for thermal management compared to standard top-emitting LEDs. Consider the 70-degree viewing angle for directional lighting needs.

LED Indication - Discrete Part Context

This part belongs to the XZxx55W-A2RT series, which utilizes a reverse-mount architecture with an inner dome lens. This series is designed to provide robust performance in space-constrained applications while maintaining high luminous efficiency through specialized lens geometry.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and dimensional tolerances before considering alternative components from other manufacturers.

LED Indication - Discrete FAQ

What is the peak wavelength of the XZDGK55W-A2RT?

The peak wavelength is 515 nm.

Does this LED feature a reverse-mount design?

Yes, the XZDGK55W-A2RT is a reverse-mount LED with an inner dome lens.
