XZFBB53W-8

LED Indication - Discrete Overview

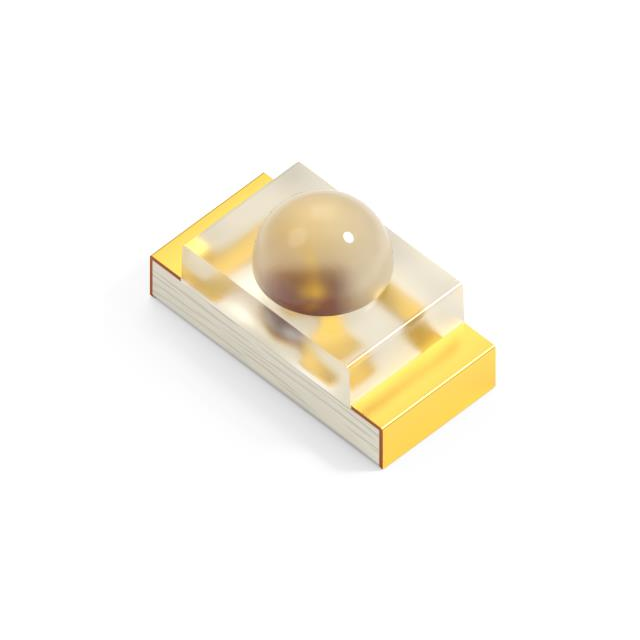

The XZFBB53W-8 is a single-color blue surface-mount LED manufactured by SunLED. It features a water-clear lens and operates at a peak wavelength of 465 nm with a dominant wavelength of 470 nm. The component has a typical forward voltage of 3.3 V at a test current of 20 mA. It offers a nominal luminous intensity of 258 mcd and a viewing angle of 100 degrees. The package dimensions are 1.60 mm in length, 0.80 mm in width, and a maximum height of 0.80 mm, conforming to the 0603 metric size.

LED Indication - Discrete Feature Summary

• Utilizes a dome-shaped lens for wide-angle light distribution
• Designed for low power consumption applications
• Compliant with RoHS standards for environmental safety

LED Indication - Discrete Applications

• Status indicator lights on electronic devices
• Backlighting for small displays
• Portable consumer electronics illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm exact binning and optical characteristics. Ensure compatibility with standard reflow soldering profiles for 0603 packages. Confirm moisture sensitivity level requirements during storage and handling procedures prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact blue light source is required for space-constrained designs. Consider the 100-degree viewing angle for broad visibility needs. Verify that the 3.3 V forward voltage aligns with the system's drive circuit capabilities and power budget constraints.

LED Indication - Discrete Part Context

This part belongs to SunLED's SMD chip LED series, specifically designed for surface-mount technology. It replaces through-hole indicators in modern PCB layouts where profile height and footprint area are critical design parameters.

LED Indication - Discrete Replacement Considerations

Check for direct substitutes within the same 0603 footprint family from SunLED or other manufacturers offering identical 470 nm blue emission and similar luminous intensity ratings.
