1-640385-0

Headers, Male Pins Overview

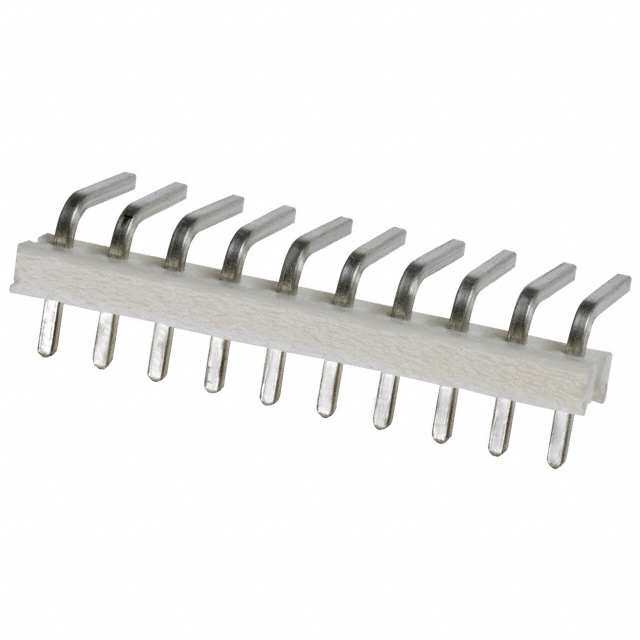

The TE Connectivity AMP Connectors part number 1-640385-0 is a rectangular connector header belonging to the MTA-156 series. It features a right-angle board-to-cable/wire style with ten positions and a 0.156-inch (3.96mm) pitch. The connector utilizes through-hole termination for mounting on printed circuit boards. Male pins are constructed from copper alloy with tin plating on both the mating and post sections. The housing is made of thermoplastic glass-filled material, rated UL94 V-0 for flammability, and operates within a temperature range of -55°C to 105°C. It supports a maximum voltage of 600VAC.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-cable wiring configurations
• Through-hole termination ensures secure PCB mounting
• Tin-plated male pins provide reliable electrical contact
• Glass-filled thermoplastic insulation offers structural stability

Headers, Male Pins Applications

• General industrial equipment interconnections
• Consumer electronics assembly
• Control panel wiring
• Board-to-wire signal transmission

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required pin count and orientation. Confirm that the tin plating thickness meets the application's corrosion resistance requirements. Ensure the through-hole pad layout aligns with the specified 3.96mm pitch dimensions. Check for any RoHS compliance documentation if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is necessary to save vertical space in dense assemblies. The MTA-156 series provides a robust solution for general-purpose applications requiring 600VAC rating. Consider the thermal operating range and mechanical locking friction type during system integration planning.

Headers, Male Pins Part Context

This connector is part of the widely used MTA-156 interconnection system by TE Connectivity AMP Connectors. The series is known for its versatility in board-to-cable applications, offering various pin counts and orientations. The 1-640385-0 specifically addresses the need for right-angle termination in ten-position configurations.

Headers, Male Pins Replacement Considerations

Compatible headers include 2-640388-0 for different pin counts within the same series. Verify mechanical fit and electrical ratings before substituting with other manufacturers' products.
