1-770190-1

Headers, Male Pins Overview

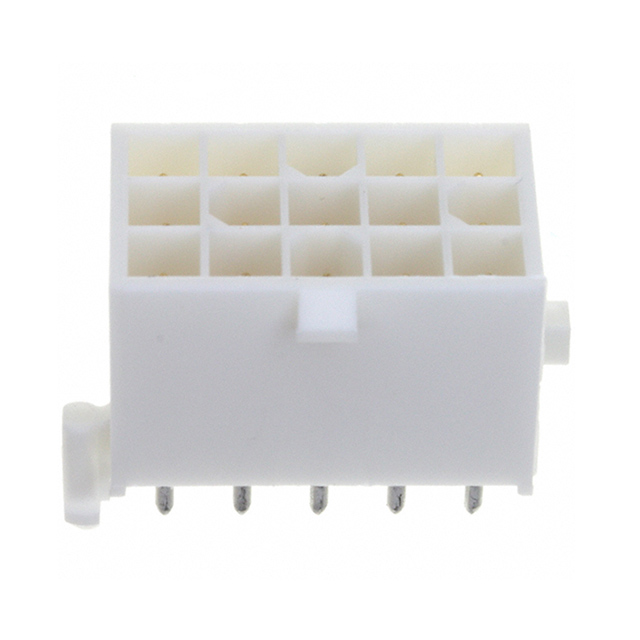

The 1-770190-1 is a PCB header from the Mini-Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features a vertical, through-hole mounting style with three rows and fifteen positions. The connector utilizes a 4.14 mm pitch and supports a voltage rating of 600V. Constructed with brass contacts plated in tin and nylon insulation, it is designed for wire-to-board applications. The component includes a cover and operates within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

• Provides secure electrical interconnection through a robust three-row vertical header design.
• Ensures reliable signal transmission using tin-plated brass contacts housed in durable nylon insulation.
• Facilitates organized wiring management with an integrated protective cover.

Headers, Male Pins Applications

• Industrial control systems requiring high-voltage connectivity
• General-purpose electronic equipment assemblies
• Wire-to-board interface solutions

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required three-row configuration and 4.14 mm pitch before procurement. Confirm that the operating environment remains within the specified -55°C to 105°C temperature limits. Ensure compatibility with standard through-hole printing processes and verify that the tin plating meets corrosion resistance requirements for the intended application.

Headers, Male Pins Selection Notes

Select this component when a high-density, three-row vertical header is necessary for board-level connections. The 600V rating makes it suitable for applications exceeding standard low-voltage limits. Consider the included cover feature if environmental protection or wire organization is a priority during assembly.

Headers, Male Pins Part Context

This component belongs to the Mini-Universal MATE-N-LOK series, known for versatile industrial connectivity. It serves as a specialized variant within the broader MATE-N-LOK family, offering higher density through its triple-row architecture while maintaining the series' established reliability standards for demanding electronic environments.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and electrical ratings against alternative suppliers if sourcing constraints arise.
