1-770859-1

Headers, Male Pins Overview

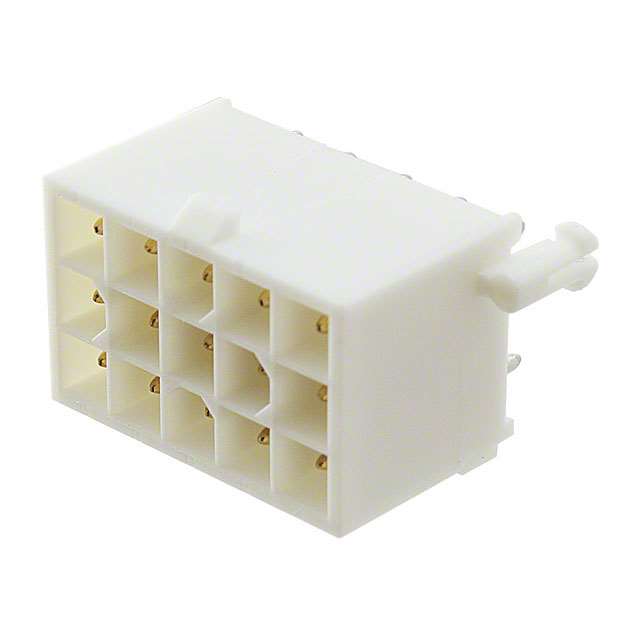

The 1-770859-1 is a Mini-Universal MATE-N-LOK header connector manufactured by TE Connectivity AMP Connectors. It features a 15-position, dual-row configuration with a 2.54 mm pitch. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. Designed for through-hole PCB mounting, this active component provides secure electrical interconnections in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Dual-row header design accommodating 15 positions
• Gold-plated contacts for enhanced conductivity
• Through-hole termination for PCB integration

Headers, Male Pins Applications

• Industrial control systems
• Consumer electronics assemblies
• Communication equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm contact plating and housing material variations. Ensure compatibility with mating socket housings within the Mini-Universal MATE-N-LOK series. Confirm that the selected variant meets the required environmental ratings for the intended application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density, dual-row connection is required for signal integrity. The gold plating offers superior performance over tin in corrosive environments. Ensure the PCB layout supports the 2.54 mm pitch and dual-row footprint requirements compatible with the Mini-Universal MATE-N-LOK system specifications.

Headers, Male Pins Part Context

This part belongs to the Mini-Universal MATE-N-LOK family, a widely used terminal block and connector system known for reliability in harsh environments. Originally developed by Aircraft Marine Products (AMP), now part of TE Connectivity, this series has been a standard for secure electrical connections since its introduction during World War II applications.

Headers, Male Pins Replacement Considerations

Compatible replacements include other 15-position dual-row headers from the Mini-Universal MATE-N-LOK series with matching pitch and contact plating. Verify mechanical dimensions and electrical ratings before substitution.
