1-770875-1

$3.33

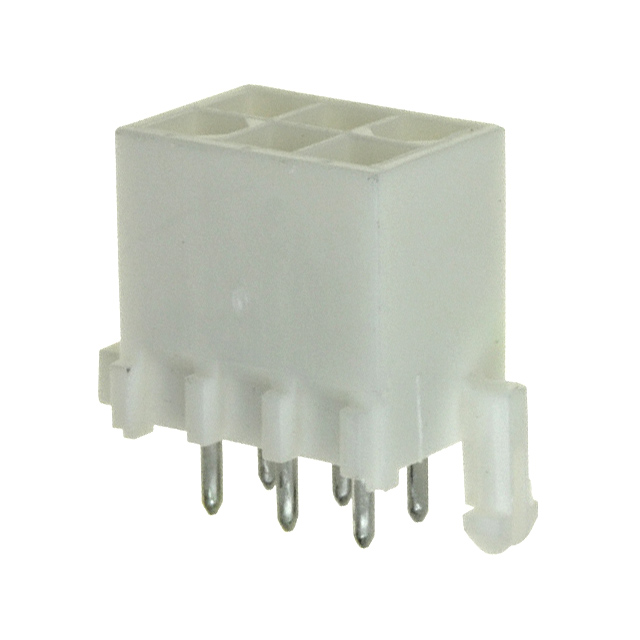

Description：CONN HEADER VERT 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:de39c35768ab Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770875-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 6POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770875-1

Description：CONN HEADER VERT 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.163" (4.14mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.163" (4.14mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.175" (4.45mm)
Overall Contact Length：-
Insulation Height：0.531" (13.50mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-20°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-770875-1

1-770875-1

Headers, Male Pins Overview

The 1-770875-1 is a pin header connector from the Mini Universal MATE-N-LOK series by TE Connectivity. It features a 6-position, 2-row configuration with a 4.14 mm pitch. Designed for through-hole straight PCB mounting, it utilizes brass contacts with matte tin plating and a nylon housing rated UL 94 V-0. The component supports a voltage rating of 600 V and a current rating of 9.5 A.

Headers, Male Pins Feature Summary

High-voltage capability up to 600 V for robust electrical isolation
Secure mating via MATE-N-LOK locking mechanism
Flame-retardant nylon housing compliant with UL 94 V-0 standards

Headers, Male Pins Applications

Industrial control systems requiring high-current connections
Power distribution units within electronic enclosures
Heavy-duty equipment interfacing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and packaging quantity against the manufacturer's latest documentation before purchase. Confirm that the required contact termination type matches the target PCB layout. Ensure compliance with RoHS directives if applicable to the end product. Cross-reference the lead time with current supply chain data as manufacturing schedules may vary.

Headers, Male Pins Selection Notes

Select this component when a 4.14 mm pitch is required for high-current applications up to 9.5 A. The vertical through-hole design suits standard PCB assembly processes. Consider the 6-position count and dual-row arrangement for space-constrained layouts needing reliable power transmission in industrial environments.

Headers, Male Pins Part Context

This part belongs to the Mini Universal MATE-N-LOK family, known for secure locking and high reliability. It serves as a male header counterpart to compatible female sockets within the same series. The design emphasizes durability and ease of assembly for demanding electronic interconnects.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the 770875-1 variant. Verify identical pitch, row count, and current ratings before substitution. Ensure mechanical fit and terminal compatibility match the original design requirements.
