1-770966-1

Headers, Male Pins Overview

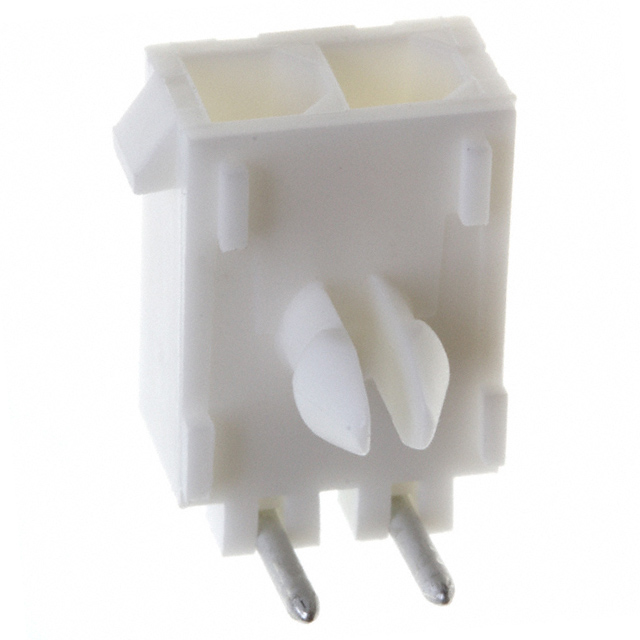

The TE Connectivity AMP Connectors part number 1-770966-1 is a Mini-Universal MATE-N-LOK header connector designed for PCB mounting. It features a 2-position, single-row configuration with male pin contacts. The unit utilizes a 4.14 mm pitch and employs a right-angle through-hole termination style. Constructed with a nylon housing and brass contacts finished with gold plating, it supports a voltage rating of 600 V and a current rating of 9.5 A. The component operates within a temperature range of -55°C to 105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle PCB mounting design for space-efficient board layouts
• Gold-plated brass contacts ensure reliable electrical conductivity
• Nylon housing provides structural integrity and UL 94 V-0 flame resistance

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer appliance circuit boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact packaging quantities and terminal variations. Ensure compatibility with mating socket connectors from the same Mini-Universal MATE-N-LOK series. Confirm that the right-angle orientation and 4.14 mm pitch align with the target printed circuit board footprint requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for high-current applications up to 9.5 A. The 600 V rating makes it suitable for power distribution circuits beyond standard signal levels. Consider the through-hole mounting method for robust mechanical stability in environments subject to vibration. Verify that the 2-position count matches the circuit design needs without requiring additional unused positions.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK series, a widely used rectangular power connector family by TE Connectivity. The series is known for its versatility in handling moderate power loads and signal transmission across various commercial and industrial sectors. It represents a standard solution for wire-to-board and board-to-board connections requiring durable, reliable interfaces.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 4.14 mm pitch, 2-position count, and right-angle through-hole configuration. Cross-reference with other Mini-Universal MATE-N-LOK headers from TE Connectivity or compatible third-party manufacturers offering identical dimensional and electrical specifications.
