1-770967-1

Headers, Male Pins Overview

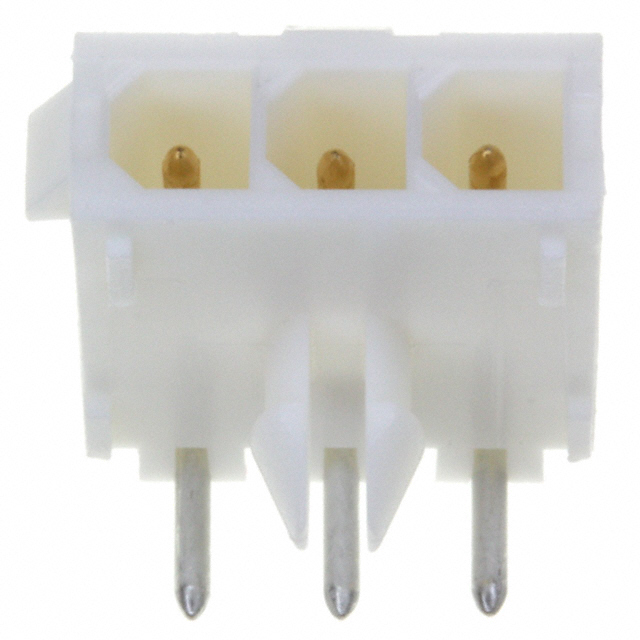

The 1-770967-1 is a 3-position right-angle pin header from the Mini-Universal MATE-N-LOK series. It features a 4.14 mm (0.163 inch) centerline and through-hole termination for PCB mounting. The connector utilizes brass contacts with gold plating, rated for 600 VAC and 9.5 A. The housing is constructed from white nylon with UL 94 V-0 flammability classification.

Headers, Male Pins Feature Summary

• Right-angle PCB header design for compact board layouts
• Gold-plated brass contacts ensure reliable signal transmission
• Nylon housing provides UL 94 V-0 flame resistance

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status. Ensure that the required contact configuration and housing color match the project specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is required on a printed circuit board. The 4.14 mm pitch accommodates standard wire gauges, while the 600 VAC rating supports general power and signal applications within industrial environments.

Headers, Male Pins Part Context

This component belongs to the Mini-Universal MATE-N-LOK series, designed for versatile electrical connections. The series offers various configurations including straight and right-angle headers, providing flexibility for diverse PCB layout requirements in electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position right-angle headers with identical 4.14 mm pitch and similar voltage ratings. Verify mechanical fit and electrical characteristics before substitution.
