1-770970-0

Headers, Male Pins Overview

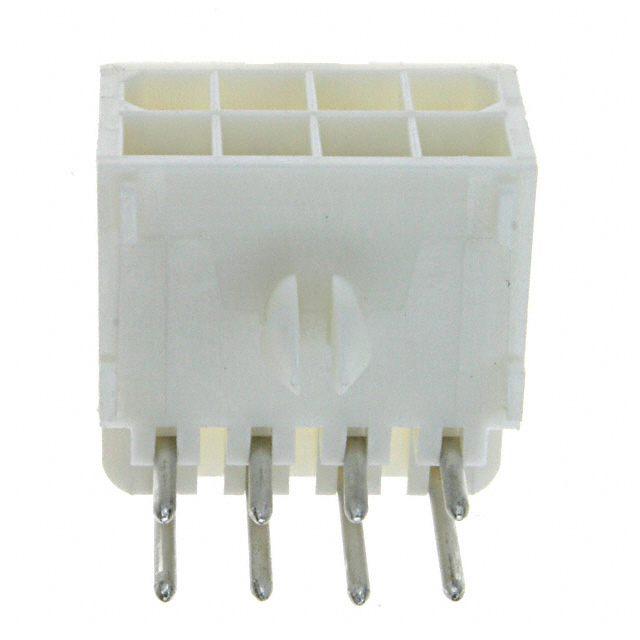

The 1-770970-0 is a rectangular power header connector from the Mini Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features an 8-position configuration with right-angle mounting for printed circuit boards. The connector utilizes male pin contacts designed for board-to-cable or wire applications, ensuring secure electrical interconnection. Constructed with brass contacts and nylon insulation, it supports reliable performance in various industrial environments.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact PCB layout integration
• Male pin contact type ensures robust mating stability
• Nylon insulation provides durable structural integrity

Headers, Male Pins Applications

• Industrial control systems
• Power distribution units
• Electronic equipment interconnections

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm that the received part matches the specified Mini Universal MATE-N-LOK series designation. Inspect packaging for damage that may compromise connector integrity during storage and handling.

Headers, Male Pins Selection Notes

Select this model when right-angle board mounting is required for eight-channel connections. Ensure compatibility with corresponding socket counterparts within the same series. Validate mechanical fit against PCB footprint specifications before finalizing the design.

Headers, Male Pins Part Context

This component belongs to the Mini Universal MATE-N-LOK family, known for versatile power and signal applications. It complements other headers and housings within the same product line, offering standardized spacing and locking mechanisms for consistent assembly processes across diverse electronic designs.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference mechanical dimensions and electrical ratings to ensure functional equivalence without compromising system safety or performance standards.
