1-770970-1

Headers, Male Pins Overview

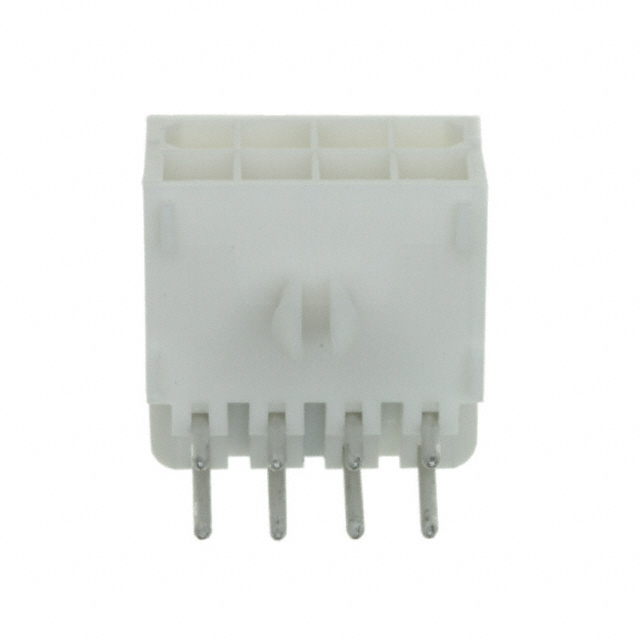

The 1-770970-1 is a dual-row header connector from the Mini-Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features 8 positions with a 0.163-inch (4.14mm) pitch. Designed for through-hole, right-angle PCB mounting, it utilizes gold-plated contacts to ensure reliable signal transmission. The component includes a board lock feature and a four-wall shielded housing for secure mechanical retention and environmental protection.

Headers, Male Pins Feature Summary

• Dual-row configuration with 8 positions for compact circuit integration
• Right-angle through-hole termination for efficient PCB layout
• Gold contact plating to enhance conductivity and corrosion resistance
• Board lock mechanism ensures stable connection during operation

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial control system wiring
• Consumer electronics assembly
• Automotive internal harness connections

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 8-position dual-row specification. Confirm that the right-angle orientation aligns with the printed circuit board design constraints. Ensure compatibility with standard tin-lead or lead-free soldering processes used in your manufacturing line. Check for any specific handling requirements related to the board lock feature during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for dual-row applications. The 0.163-inch pitch offers a balance between density and ease of assembly. Consider the gold contact finish if long-term reliability in corrosive environments is a priority. Evaluate the mechanical strength provided by the board lock against vibration requirements in the target application.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK family, known for its versatility in power and signal applications. The series supports various pin counts and orientations, making it suitable for diverse industrial and commercial uses. The 1-770970-1 variant specifically addresses needs for right-angle, multi-position connections with robust locking mechanisms.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Generic equivalents may not match the precise pitch or locking mechanism specifications.
