Headers, Male Pins Overview

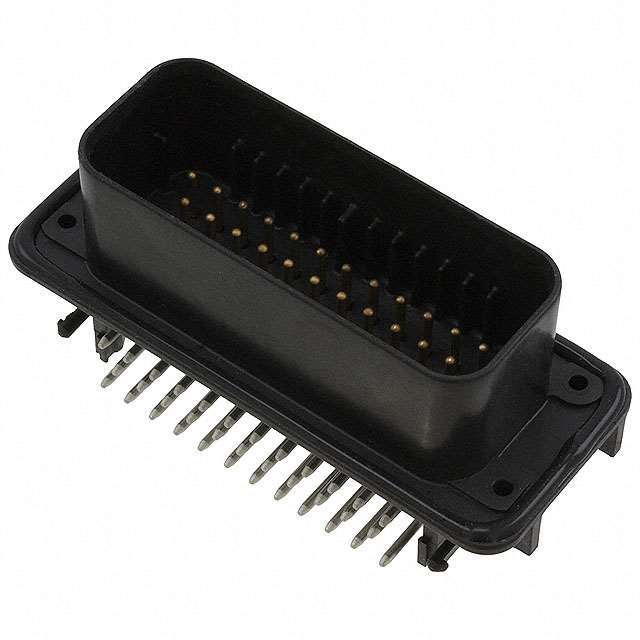

The TE Connectivity AMP Connectors part number 1-776163-1 is a right-angle PCB header from the AMPSEAL series. It features 35 contact positions with male pin terminals and a 4.00 mm (0.157 in) centerline. Designed for wire-to-board connections, this component utilizes through-hole termination for secure mounting. The connector supports an operating current of 17A and provides IP6K9K ingress protection ratings. It is constructed with black housing material suitable for automotive applications.

Headers, Male Pins Feature Summary

• Provides robust sealing capabilities with IP6K9K rating to withstand high-pressure washdowns
• Features a right-angle design for efficient board space utilization
• Includes flange mounting for stable mechanical support

Headers, Male Pins Applications

• Automotive electronic systems requiring sealed connections
• Industrial control panels exposed to harsh environments
• Wire-to-board interconnects in heavy-duty machinery

Headers, Male Pins Procurement Notes

Verify the specific datasheet revision and RoHS compliance status before procurement. Confirm that the right-angle orientation matches the assembly requirements. Ensure mating connectors are compatible with the 4.00 mm pitch and male pin configuration. Check for any recent product change notices affecting material specifications or manufacturing locations.

Headers, Male Pins Selection Notes

Select this component when high environmental sealing is required alongside a right-angle PCB layout. The 17A current capacity suits power distribution tasks. Consider the IP6K9K rating if exposure to high-temperature water jets is expected. Verify that the 35-position count aligns with circuit density needs without excessive board area usage.

Headers, Male Pins Part Context

This header belongs to the AMPSEAL series, known for reliability in automotive and industrial sectors. The series emphasizes waterproofing and durability under extreme conditions. As a TE Connectivity product, it integrates into broader connectivity solutions for demanding applications where standard connectors might fail due to moisture or pressure.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative AMPSEAL headers with matching 4.00 mm pitch and 35 positions only if official cross-reference data is available from the manufacturer.
