1-776180-1

Headers, Male Pins Overview

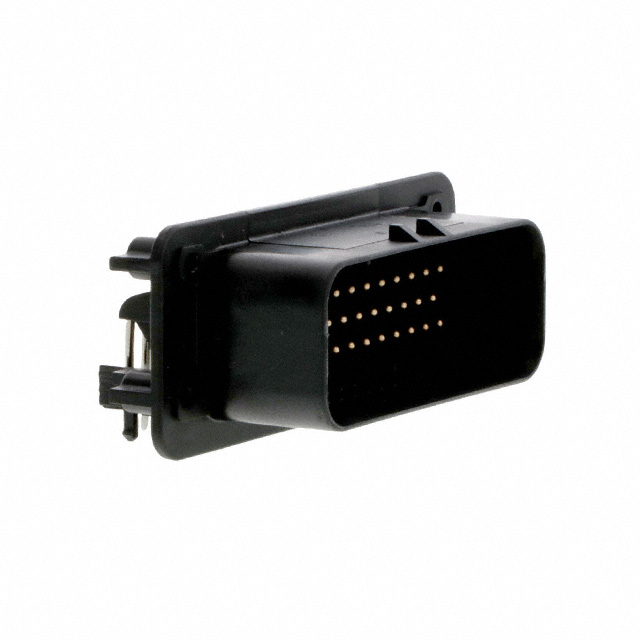

The 1-776180-1 is a rectangular power connector header from the AMPSEAL series, manufactured by TE Connectivity AMP Connectors. It features 35 positions with a 4.00 mm (0.157 inch) pitch. Designed for through-hole mounting on printed circuit boards, this right-angle header provides robust electrical connections in demanding environments. The component is engineered to withstand extreme temperatures and moisture, making it suitable for high-reliability applications requiring durable PCB interconnects.

Headers, Male Pins Feature Summary

• Engineered to withstand extreme temperatures and moisture conditions
• Provides sealed connection capability to printed circuit boards
• Right-angle design facilitates compact board layout integration

Headers, Male Pins Applications

• Automotive underhood electronics systems
• Industrial control modules requiring environmental sealing
• High-reliability PCB interconnects in harsh operating conditions

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official TE Connectivity documentation to confirm exact contact plating, housing material, and locking mechanism variations. Ensure the selected variant matches the required current rating and environmental protection level for the target application. Cross-reference the full part number with manufacturer datasheets to avoid ordering incorrect pin configurations or mounting styles.

Headers, Male Pins Selection Notes

Select this component when a 35-position, right-angle through-hole header is required for high-temperature and moisture-resistant applications. Consider the 4.00 mm pitch and AMPSEAL series sealing capabilities for robust performance. Evaluate space constraints due to the right-angle form factor and ensure compatibility with mating connectors within the same product family.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL series of rectangular power connectors, widely used in automotive and industrial sectors. The series is known for providing reliable, sealed interconnections that protect against environmental contaminants. The 1-776180-1 specifically serves as a PCB-mount header, complementing the broader ecosystem of AMPSEAL plugs and accessories designed for rigorous operational demands.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the 1-776180-6 and 776180-1, which share the same 35-position, 4.00 mm pitch, right-angle through-hole header configuration within the AMPSEAL series. Verify that any replacement maintains identical sealing characteristics and environmental ratings.
