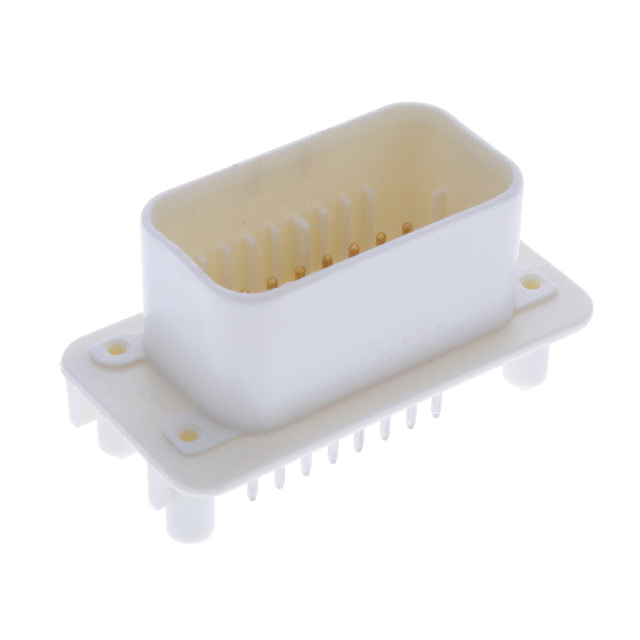

1-776200-2

$12.47

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:88730d61bfdd Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776200-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776200-2

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776200-2

1-776200-2

Headers, Male Pins Overview

The 1-776200-2 is a panel mount, through-hole connector header manufactured by TE Connectivity AMP Connectors. It features a 23-position configuration with a 0.157-inch (4.00mm) pitch. The component is designed for vertical orientation and utilizes solder termination for secure PCB attachment. Rated for 250VAC, it supports automotive and industrial applications requiring reliable signal or power transmission.

Headers, Male Pins Feature Summary

Vertical panel mount design for structured integration
Through-hole solder termination for robust mechanical stability
23-position layout with 4.00mm pitch spacing

Headers, Male Pins Applications

Automotive electronic systems
Industrial control equipment
Signal transmission interfaces

Headers, Male Pins Procurement Notes

Verify the specific current rating against the wire gauge used in your application, as this parameter varies. Confirm that the 250VAC voltage rating aligns with your system requirements. Ensure the 4.00mm pitch matches the corresponding socket or cable assembly to guarantee proper mating and electrical continuity.

Headers, Male Pins Selection Notes

Select this component when a vertical, high-density header is required for panel mounting. The 23-position count suits complex signal routing needs. Verify compatibility with standard through-hole reflow or wave soldering processes. Ensure the housing material and contact plating meet environmental durability standards for the target operating conditions.

Headers, Male Pins Part Context

This part belongs to the broader TE Connectivity AMP Connectors portfolio, specializing in interconnect solutions. It falls under the category of rectangular connectors and headers. The product line emphasizes reliability in demanding environments, leveraging TE's extensive engineering resources for connector design and manufacturing.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify pinout, pitch, and mechanical dimensions before considering alternative manufacturers.
