1-776230-4

$18.27

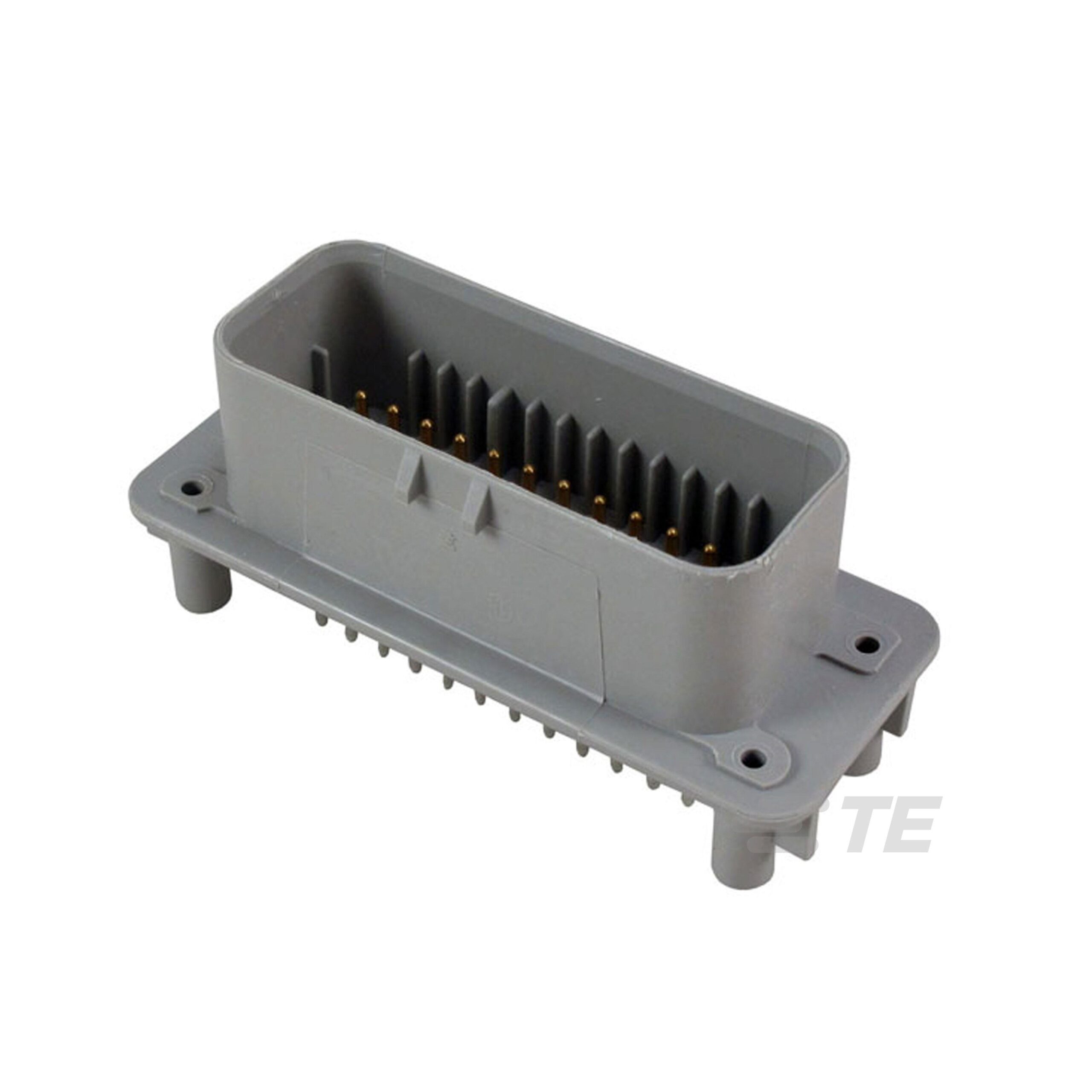

Description：CONN HEADER VERT 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:a7b143ff07bb Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776230-4 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 35POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776230-4

Description：CONN HEADER VERT 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：35
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Gray
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776230-4

1-776230-4

Headers, Male Pins Overview

The 1-776230-4 is a fully shrouded, sealable header connector assembly from the AMP Automotive series by TE Connectivity. Designed for wire-to-board applications, it features brass contacts and Polybutylene Terephthalate (PBT) insulation filled with glass. The component supports a voltage rating of 250VAC, with current capacity varying based on wire gauge. It includes mounting flanges for secure installation and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

Fully shrouded design ensures proper alignment and protection during mating
Sealable construction provides environmental protection against contaminants
Integrated mounting flange facilitates stable panel or board attachment

Headers, Male Pins Applications

Automotive electronic control units
Industrial machinery wiring harnesses
Harsh environment sensor interfaces

Headers, Male Pins Procurement Notes

Verify that the specific contact configuration matches the target wire gauge requirements to ensure adequate current carrying capacity. Confirm that the sealable housing design aligns with the required ingress protection standards for the intended application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a robust, automotive-grade header is needed for wire-to-board connections requiring environmental sealing. Ensure compatibility with existing PCB layouts due to the fixed mounting flange dimensions and verify that the PBT insulation material meets thermal requirements.

Headers, Male Pins Part Context

This part belongs to the AMP Automotive series, known for reliable interconnect solutions in demanding conditions. TE Connectivity manufactures these components using advanced polymer and metal technologies to support data, power, and signal transmission across various industrial and transportation sectors.
