1-776261-1

$9.47

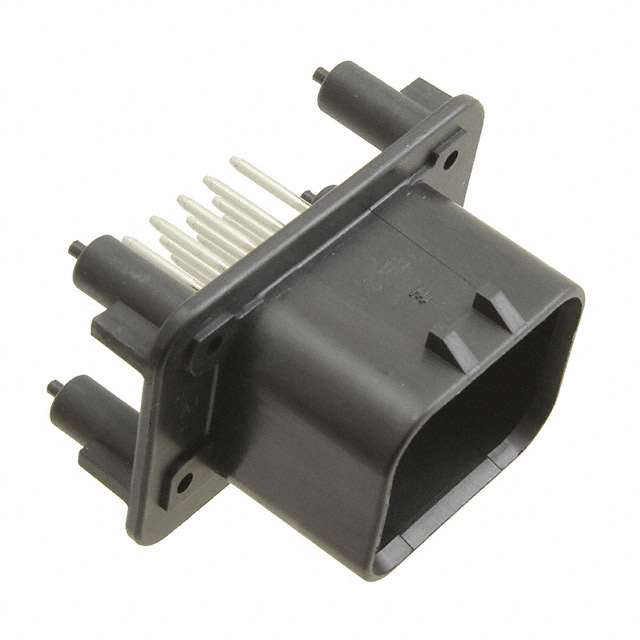

Description：CONN HEADER VERT 14POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:96a4772fd1b6 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776261-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 14POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776261-1

Description：CONN HEADER VERT 14POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：14
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776261-1

1-776261-1

Headers, Male Pins Overview

The 1-776261-1 is a TE Connectivity AMPSEAL automotive connector header featuring 14 contacts arranged in a straight configuration. Designed for PCB pin termination, this component utilizes brass terminals with tin plating to ensure reliable signal and power transmission in demanding environments. The housing is constructed from durable materials suitable for high-vibration applications typical of automotive systems.

Headers, Male Pins Feature Summary

Straight header design optimized for direct printed circuit board mounting
Tin-plated brass contacts provide corrosion resistance and stable conductivity
AMPSEAL series construction ensures robust sealing against environmental factors

Headers, Male Pins Applications

Automotive electronic control units
Vehicle wiring harness interconnections
On-board diagnostic system interfaces

Headers, Male Pins Procurement Notes

Verify the specific AMPSEAL variant and contact count against the original equipment manufacturer specifications before procurement. Ensure compatibility with mating connectors regarding locking mechanisms and seal requirements. Confirm that the straight header orientation aligns with the intended PCB layout and spatial constraints within the assembly.

Headers, Male Pins Selection Notes

Select this component when a 14-position straight header is required for automotive PCB integration. Consider the AMPSEAL series for its established reliability in harsh environments. Evaluate the tin-plated terminal finish for adequate corrosion protection relative to the operating conditions and mating cycle expectations.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL family, a widely used automotive connector system by TE Connectivity. The series is known for providing secure connections in vehicle electrical networks. The 1-776261-1 specifically represents a straight header variant, differing from vertical or angled configurations found in other series members.
