1-794068-1

Headers, Male Pins Overview

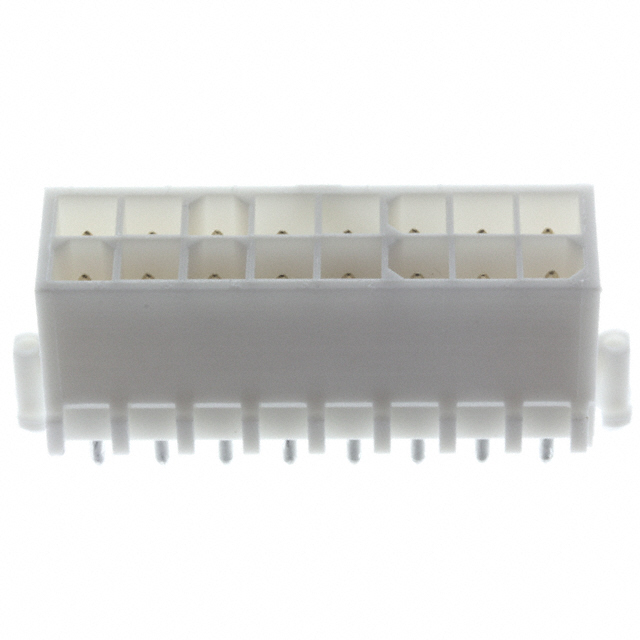

The TE Connectivity AMP Connectors part number 1-794068-1 is a vertical pin header from the Mini Universal MATE-N-LOK series. It features a dual-row configuration with 16 positions and a pitch spacing of 4.14mm (0.163 inches). The connector utilizes brass contacts with gold plating for reliable mating surfaces. Designed for through-hole termination, it supports wire-to-board applications. The housing is constructed from white nylon with UL 94 V-0 flammability rating. Rated for 600VAC, it employs a board lock mechanism for secure PCB mounting.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for robust signal transmission
• Gold-plated brass contacts ensure stable electrical connectivity
• Vertical orientation facilitates efficient PCB layout integration
• Board lock mechanism provides secure mechanical retention

Headers, Male Pins Applications

• Wire-to-board interconnections in industrial equipment
• Signal routing within general-purpose electronic assemblies
• Control panel wiring harnesses requiring high reliability
• Medical device internal circuit connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications. Ensure compatibility with mating socket connectors within the same MATE-N-LOK family. Confirm that the vertical profile and dual-row arrangement meet the target PCB footprint requirements. Check for any recent product change notices regarding insulation materials or environmental compliance updates before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, dual-row header with 4.14mm spacing is required. Consider the gold contact finish for environments demanding low contact resistance. Evaluate the 600VAC rating against system voltage requirements. Ensure the through-hole mounting style aligns with the manufacturing process. Verify that the board lock feature satisfies the mechanical stability needs of the assembly.

Headers, Male Pins Part Context

This connector belongs to the Mini Universal MATE-N-LOK series, known for versatile power and signal applications. It represents TE Connectivity's legacy in reliable rectangular connector systems. The design emphasizes ease of assembly and long-term durability. It serves as a standard solution for connecting wires to printed circuit boards in various commercial and industrial sectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other headers within the Mini Universal MATE-N-LOK 2 Series sharing identical pin count and pitch. Verify cross-referencing with equivalent parts from other manufacturers only if mechanical and electrical parameters match exactly. Do not assume interchangeability without verifying housing dimensions and locking mechanisms.
