1-794069-0

Headers, Male Pins Overview

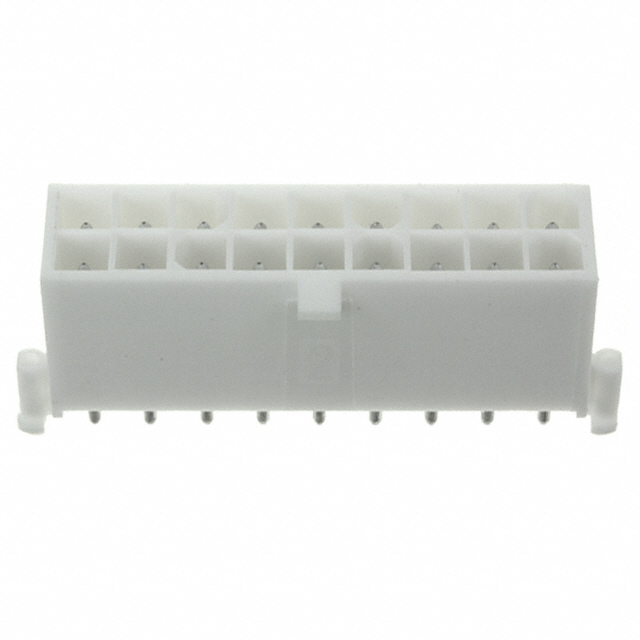

The 1-794069-0 is a connector header from the Mini-Universal MATE-N-LOK II series by TE Connectivity. It features an 18-position, 2-row configuration with a 4.14 mm (0.163 inch) centerline spacing. Designed for through-hole mounting, this white nylon housing supports wire-to-board applications. The component is CSA and UL certified, ensuring compliance with safety standards for electrical connections in various industrial environments.

Headers, Male Pins Feature Summary

• Provides reliable grouping of multiple-lead connections using the MATE-N-LOK system
• Features durable nylon housing suitable for board-mount installations
• Includes CSA and UL certification for quality assurance

Headers, Male Pins Applications

• Wire-to-board interconnections
• Industrial equipment signal routing
• Control panel assembly

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 18-position, 2-row header specification. Confirm that the through-hole mounting style aligns with the printed circuit board design. Ensure compatibility with corresponding MATE-N-LOK contacts is established prior to integration into the final assembly process.

Headers, Male Pins Selection Notes

Select this component when a robust, certified header is needed for moderate current applications. The 4.14 mm pitch allows for easy handling and soldering. Consider the nylon material properties for environmental resistance. Validate that the 18-pin count meets the circuit requirements without excess unused positions.

Headers, Male Pins Part Context

This part belongs to the Mini-Universal MATE-N-LOK II family, known for cost-effective and reliable connectivity solutions. The series supports various contact types and housing configurations. TE Connectivity manufactures these components to meet rigorous industry standards for durability and electrical performance in demanding applications.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 18-position, 2-row headers within the same MATE-N-LOK II series, such as different color variants or packaging options. Verify pin count, pitch, and mounting type before swapping.
