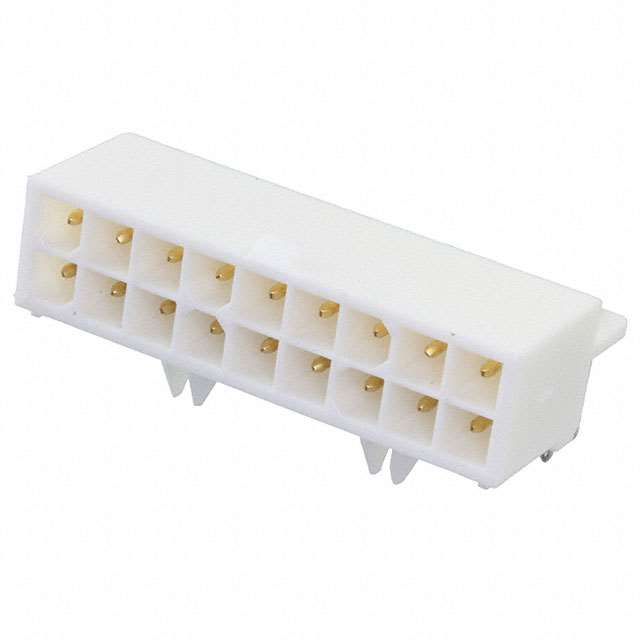

1-794105-1

1-794105-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 18POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794105-1

• Description：CONN HEADER R/A 18POS 4.14MM
• Series：Mini-Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.163" (4.14mm)
• Number of Positions：18
• Number of Rows：2
• Row Spacing - Mating：0.163" (4.14mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.145" (3.68mm)
• Overall Contact Length：-
• Insulation Height：0.386" (9.80mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Board Lock
• Operating Temperature：-20°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：White
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-794105-1
