1-794106-1

Headers, Male Pins Overview

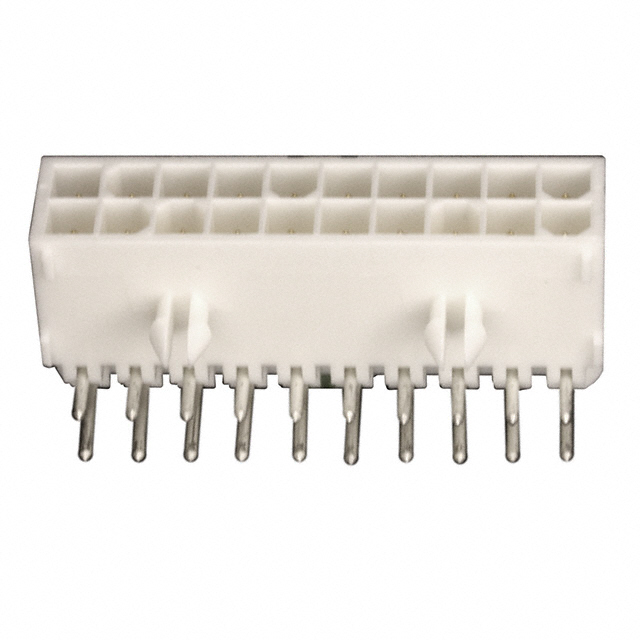

TE Connectivity AMP Connectors part number 1-794106-1 is a dual-row male header connector designed for board-to-cable or wire applications. It features 20 positions with a 0.100-inch (2.54mm) pitch and utilizes right-angle solder termination. The housing is shrouded with a four-wall design to ensure proper alignment and protection. Contact surfaces are gold-plated to provide reliable electrical performance in demanding environments.

Headers, Male Pins Feature Summary

• Dual-row configuration with 20 positions for high-density interconnects
• Right-angle orientation facilitates compact circuit board layouts
• Four-wall shrouded housing ensures precise mating alignment
• Gold-plated contacts offer durable and low-resistance connections

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission
• Medical equipment utilizing standardized interconnect solutions
• Telecommunications infrastructure hardware assemblies
• General-purpose electronic devices needing reliable board-to-wire links

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm exact plating thickness, material grades, and packaging configurations. Ensure compatibility with mating sockets regarding current ratings and voltage specifications before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header is required for secure board-to-cable connections. The shrouded design prevents misalignment during assembly. Confirm that the PCB footprint matches the 2.54mm pitch and that the soldering process accommodates the right-angle terminal geometry without stress on the joints.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU Mod II series, a widely recognized line of rectangular connectors from TE Connectivity. The series is known for its versatility across various industries, offering both single and dual-row options with different contact counts and termination styles to suit diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Cross-reference with other manufacturers' dual-row headers featuring identical 2.54mm pitch and right-angle termination. Verify mechanical dimensions, shroud height, and contact material compatibility to ensure functional equivalence without redesigning the host printed circuit board.

Headers, Male Pins FAQ

What is the contact material for this connector?

The contacts are made from phosphor bronze with a gold plating finish to ensure conductivity and corrosion resistance.

Does this connector support surface mount technology?

No, this specific model uses through-hole solder termination, not surface mount technology.
