1-794108-0

Headers, Male Pins Overview

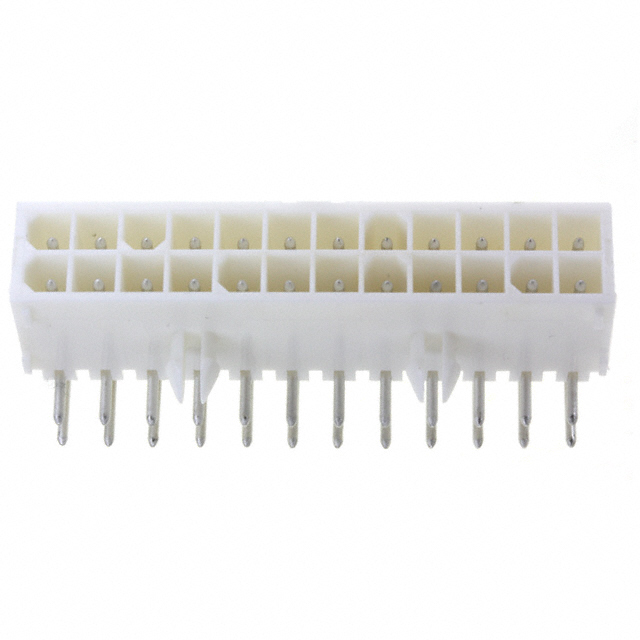

The 1-794108-0 is a pin header connector from the MATE-N-LOK series by TE Connectivity AMP Connectors. It features a right-angle, wire-to-board configuration with 24 positions arranged in two rows. The component utilizes a 4.14 mm pitch and employs through-hole termination for PCB mounting. Constructed with a nylon housing and brass contacts finished with matte tin plating, it supports a voltage rating of 600 V and a current rating of 9.5 A.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Dual-row architecture provides high-density connectivity
• Through-hole termination ensures secure mechanical attachment

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics harnesses
• General purpose equipment interconnections

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm orientation and contact material specifications. Confirm RoHS compliance status as manufacturing updates may alter regulatory classifications. Ensure mating components match the 4.14 mm pitch and dual-row geometry for proper assembly.

Headers, Male Pins Selection Notes

Select this part when right-angle mounting is required for space-constrained applications. The 24-position capacity suits moderate density needs. Verify that the 600 V rating aligns with system electrical requirements. Consider the through-hole process compatibility with available PCB fabrication capabilities.

Headers, Male Pins Part Context

This component belongs to the MATE-N-LOK family, known for reliable power and signal transmission. TE Connectivity AMP Connectors manufactures this series for demanding environments. The product represents a standard solution for industrial and automotive interconnectivity needs.

Headers, Male Pins Replacement Considerations

Consult official substitution guides for direct equivalents. Verify dimensional compatibility and electrical ratings before adopting alternative part numbers.
