1-794632-8
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

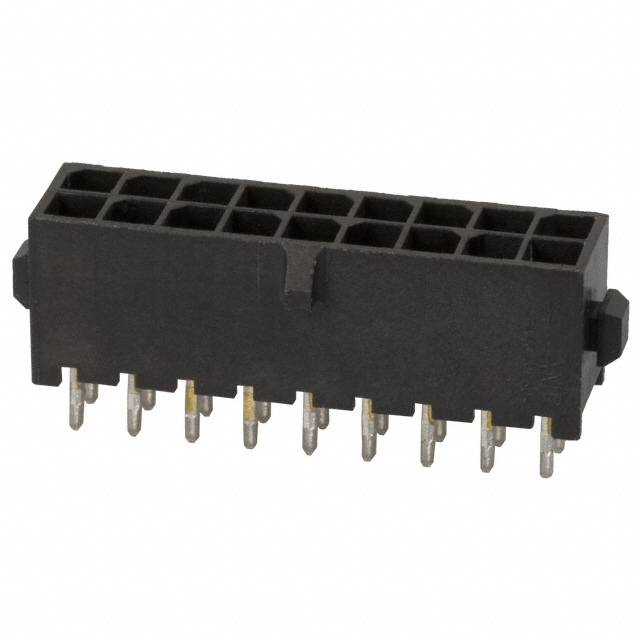

- Description：CONN HEADER VERT 18POS 3MM
- Series：Micro MATE-N-LOK
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Press-Fit, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.125" (3.18mm)
- Overall Contact Length：-
- Insulation Height：0.364" (9.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold or Gold-Palladium
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Brass
- Insulation Material：Polyamide (PA), Nylon
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：250V
