1-794677-4

Headers, Male Pins Overview

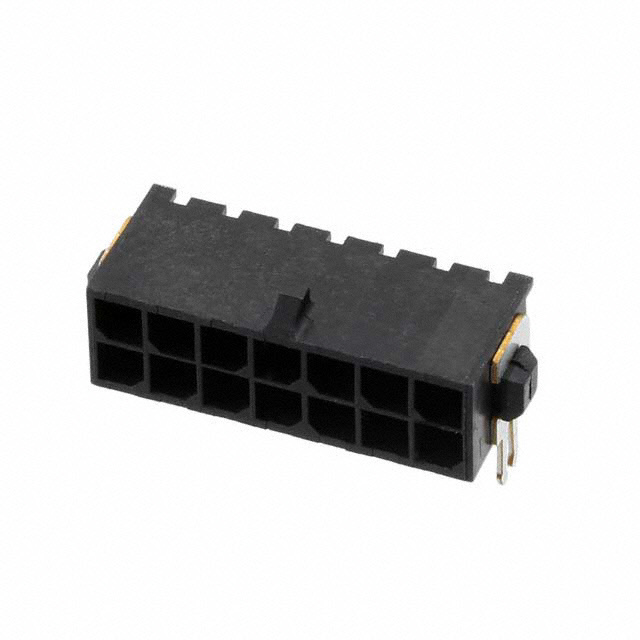

The 1-794677-4 is a connector header assembly from the Micro MATE-NLOK series by TE Connectivity AMP Connectors. It features a right-angle configuration with 14 positions arranged in two rows. The component utilizes a 3mm pitch for mating connections and is designed for through-hole termination on printed circuit boards. The housing material provides structural integrity, while the contact interface ensures reliable signal transmission in embedded applications.

Headers, Male Pins Feature Summary

• Right-angle design for space-efficient PCB mounting
• Dual-row configuration supporting high-density interconnects
• Through-hole termination method for secure board attachment

Headers, Male Pins Applications

• Embedded system controller interfaces
• Industrial equipment signal routing
• Medical device internal connectivity

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the target application requirements before ordering. Confirm that the right-angle orientation aligns with the mechanical layout constraints of the host printed circuit board. Ensure compatibility with the mating socket components within the same Micro MATE-NLOK series to guarantee proper engagement and electrical continuity.

Headers, Male Pins Selection Notes

Select this component when a compact, dual-row header is required for right-angle PCB integration. The 3mm pitch offers a balance between connection density and spacing reliability. Consider the through-hole mounting style if robust mechanical fixation is prioritized over surface-mount alternatives. Validate that the housing material meets the thermal and environmental standards of the intended operating environment.

Headers, Male Pins Part Context

This part belongs to the Micro MATE-NLOK family, known for versatile pin-and-socket solutions. The series supports various configurations including headers, housings, and contacts. The 1-794677-4 specifically addresses needs for multi-position right-angle interconnections in constrained spaces, serving as a critical link in complex electronic assemblies requiring stable signal paths.

Headers, Male Pins Replacement Considerations

• 3-794677-4

Headers, Male Pins FAQ

What is the contact arrangement for this connector?

It features a dual-row header configuration with 14 total positions.

How is this component mounted to the circuit board?

It uses a through-hole termination method with a right-angle lead orientation.
