1-794677-6

Headers, Male Pins Overview

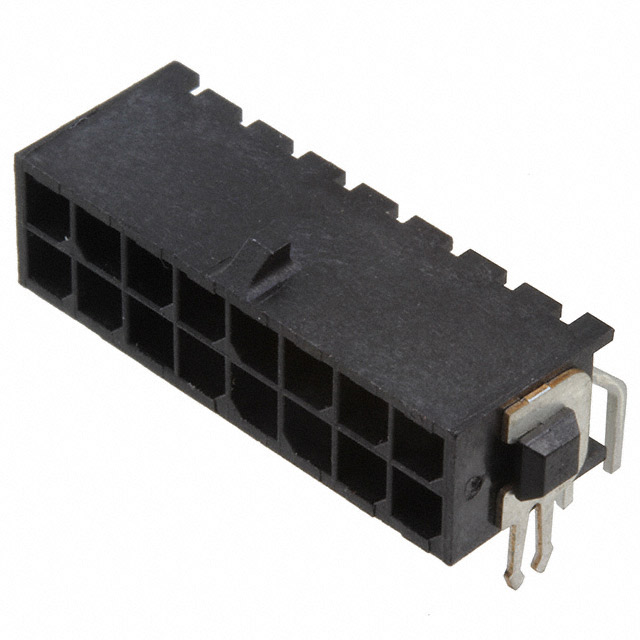

The TE Connectivity AMP Connectors part number 1-794677-6 is a Micro MATE-N-LOK series rectangular connector housing. It features a 16-position, double-row configuration with a 3.00mm (0.118 inch) pitch. The housing is designed for socket-type contacts and utilizes a pin-lock fastening mechanism. Constructed from black polyamide (PA66/nylon 6/6), it supports free-hanging installation and crimp termination for separate contacts. The component operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Double-row housing design accommodating 16 positions for high-density circuit integration
• Pin-lock fastening system ensures secure mating engagement between housing pairs
• Polyamide insulation material provides thermal stability across a wide operating range

Headers, Male Pins Applications

• Industrial control systems requiring reliable signal interconnection
• General electronic equipment utilizing standard micro connector interfaces
• Custom wiring harness assemblies for board-to-wire applications

Headers, Male Pins Procurement Notes

Verify the specific contact part numbers required for this housing, as contacts are sold separately. Confirm that the selected contacts match the 3.00mm pitch and crimp termination type specified for the 1-794677-6 housing. Ensure compatibility with mating housings from the same Micro MATE-N-LOK series to guarantee proper alignment and locking function.

Headers, Male Pins Selection Notes

Select this housing when a 16-position, double-row interface is necessary for compact circuit layouts. Choose this variant over single-row options if higher pin density per unit width is required. Consider the free-hanging mounting style for applications where the connector is not panel-mounted. Verify that the operating environment falls within the specified -40°C to 105°C temperature limits for the polyamide material.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, a widely used line of rectangular connectors known for their versatility in general-purpose applications. The series offers various position counts and row configurations to suit different circuit requirements. As a housing-only component, it serves as the structural interface for individual crimp contacts, allowing for flexible assembly designs tailored to specific wire gauge and current needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 16-position, double-row Micro MATE-N-LOK housings with identical 3.00mm pitch and pin-lock mechanisms. Verify dimensional compatibility and mating interface standards before substitution. Alternative series may require adapter solutions or redesign of the contact termination strategy.
