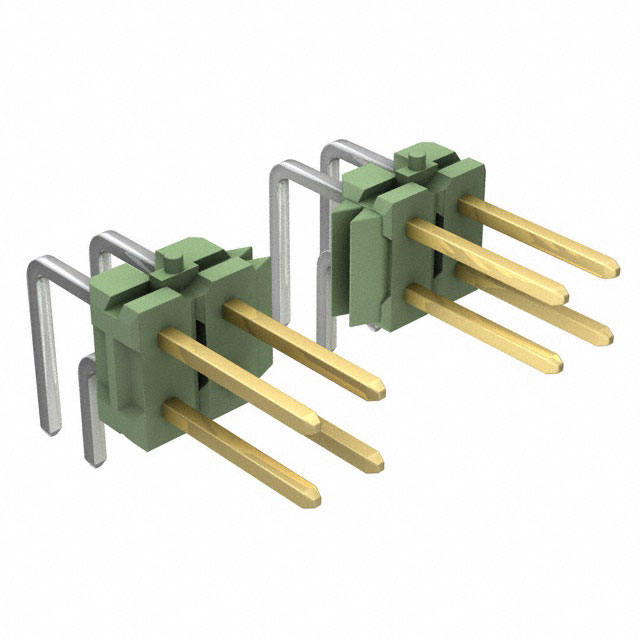

1-825457-0

$2.57

Description：CONN HEADER R/A 20POS 2.54MM
Series：AMPMODU Mod II
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:24800b9bd876 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-825457-0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 20POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-825457-0

Description：CONN HEADER R/A 20POS 2.54MM
Series：AMPMODU Mod II
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.264" (6.70mm)
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.197" (5.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.90µin (0.099µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT)
Features：-
Operating Temperature：-65°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 1-825457-0

1-825457-0

Headers, Male Pins Overview

The 1-825457-0 is a right-angle pin header connector from the AMPMODU Mod II series, manufactured by TE Connectivity AMP Connectors. It features a board-to-board configuration with two rows and twenty contacts. The connector utilizes a 2.54 mm pitch for mating interfaces. It is designed for through-hole termination to ensure secure mounting on printed circuit boards. The component supports signal transmission applications within electronic assemblies.

Headers, Male Pins Feature Summary

Right-angle orientation facilitates compact vertical board stacking
Two-row layout provides dense contact arrangement
Through-hole termination ensures robust mechanical fixation

Headers, Male Pins Applications

Board-to-board interconnection systems
Electronic assembly signal routing
Vertical PCB stacking configurations

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status. Check for any product change notices or end-of-life announcements prior to procurement. Ensure compatibility with mating connectors regarding pitch and row configuration. Confirm that the right-angle design meets the spatial requirements of the target application.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is required between parallel printed circuit boards. The 2.54 mm pitch is standard for many legacy and general-purpose digital interfaces. Consider the physical profile and height constraints of the assembly. Verify that the through-hole mounting method aligns with the manufacturing process capabilities of the production line.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU Mod II family, which offers a range of rectangular interconnect solutions. The series is known for providing reliable connections in various industrial and commercial environments. The 1-825457-0 variant specifically addresses needs for angled connections where space efficiency is critical.
