1414600

Overview

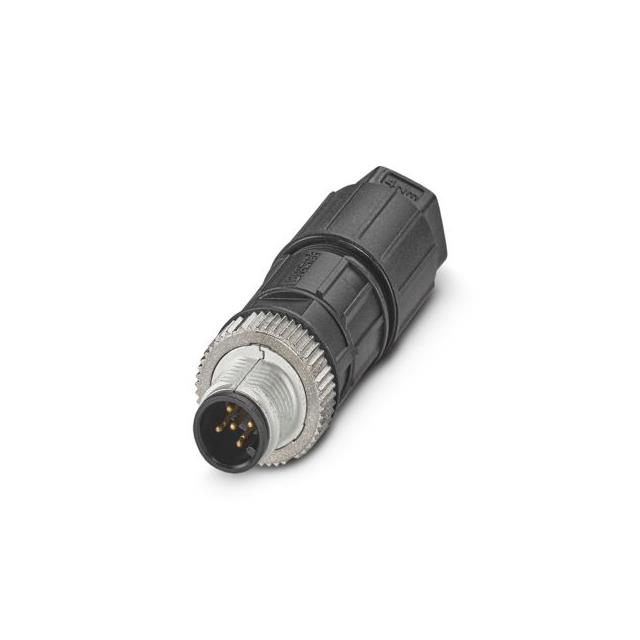

Phoenix Contact part number 1414600 is a circular connector assembly designed for industrial applications. It features a 5-position straight M12 plug with A-coding. The unit utilizes a quick wire-stripping-free connection method for efficient installation. The cable opening accommodates diameters from 4 mm to 7 mm. Operating temperature ranges from -40°C to 85°C. Voltage ratings are 48VAC and 60VDC.

Feature Summary

• Straight M12 plug configuration with A-coding for standard signal transmission
• Quick connection technology eliminates the need for manual wire stripping
• Robust zinc die-cast housing with nickel plating for corrosion resistance

Applications

• Industrial sensor and actuator wiring connections
• Control cabinet internal wiring harnesses
• Automation equipment signal distribution

Procurement Notes

Verify that the specific application voltage does not exceed the 60VDC rating. Confirm that the cable outer diameter falls within the 4 mm to 7 mm range to ensure proper sealing and strain relief. Ensure the mating environment supports the specified operating temperature limits of -40°C to 85°C.

Selection Notes

Select this model when a straight M12 connector with five positions is required. The A-coding ensures compatibility with standard M12 devices. The quick connection feature reduces assembly time compared to screw-terminal variants. Verify that the environmental conditions do not require higher voltage ratings or different coding schemes.

Part Context

This component belongs to Phoenix Contact's circular connector portfolio, specifically the M12 series. It serves as a termination point for multi-core cables in control systems. The design prioritizes rapid installation through its specialized contact interface while maintaining mechanical stability in industrial settings.

Replacement Considerations

No direct substitute part numbers are documented in the provided source material.
