1414601

Overview

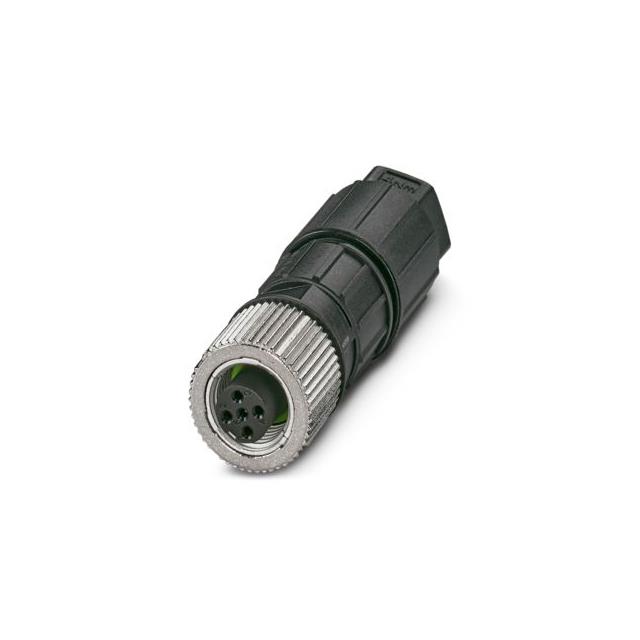

Phoenix Contact 1414601 is a circular connector assembly from the SACC series, designed for sensor and actuator applications. It features an M12 socket with five contacts and female pin configuration. The unit utilizes cable termination and provides IP65 ingress protection when mated. Rated for 30V AC/DC with a current capacity of 4A, it operates within a temperature range of -40°C to +85°C. The housing is constructed from polyamide (PA), while the shell is zinc die-cast with nickel plating. Contacts are copper-based with gold plating.

Feature Summary

• Provides reliable connectivity for industrial sensor and actuator networks
• Ensures environmental sealing against dust and water jets upon mating
• Facilitates direct cable connection without additional tools

Applications

• Industrial automation control panels
• Sensor and actuator field wiring
• Machine tool electrical connections

Procurement Notes

Verify part number authenticity through authorized Phoenix Contact channels. Confirm technical specifications match system requirements before procurement. Check for RoHS compliance status in official documentation. Ensure storage conditions prevent damage to the polyamide housing and metal contacts prior to installation.

Selection Notes

Select this model for applications requiring M12 interface with five signal lines. Consider the IP65 rating for environments exposed to washing or splashing. Evaluate the -40°C to +85°C operating range against ambient conditions. Verify that the female contact type aligns with the mating male plug requirements.

Part Context

The 1414601 belongs to the SACC series of pre-assembled circular connectors. This series is engineered for robust performance in harsh industrial settings. It complements other Phoenix Contact interconnect solutions by offering standardized M12 interfaces. The design supports efficient cabling strategies in automated manufacturing systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
