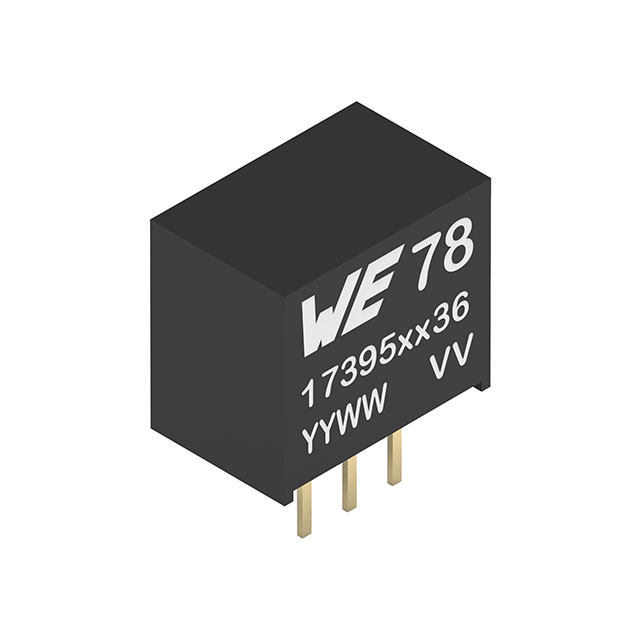

173951236

173951236 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FDSM FIXED STEP DOWN REGULATOR M. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 173951236

• Description：FDSM FIXED STEP DOWN REGULATOR M
• Series：MagI³C, FDSM
• Mfr：Würth Elektronik
• Package：Tube
• Type：Linear Regulator Replacement
• Number of Outputs：1
• Voltage - Input (Min)：15V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 173951236
