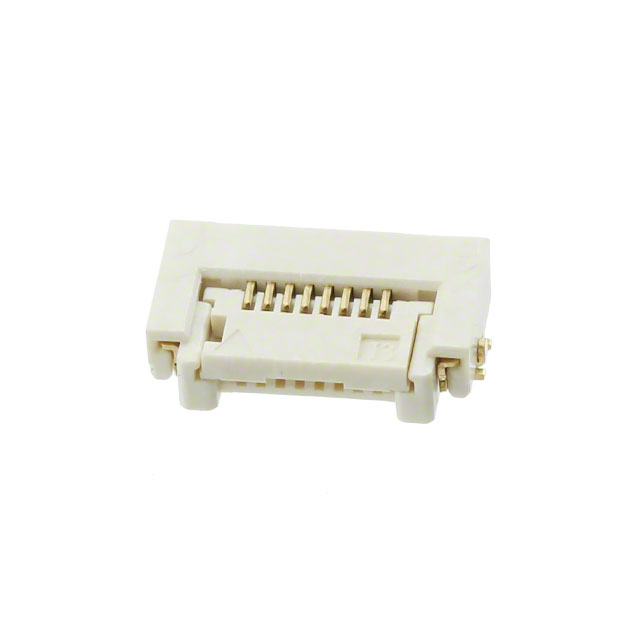

1775333-8

1775333-8 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN FPC BOTTOM 8POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 1775333-8

• Description：CONN FPC BOTTOM 8POS 0.5MM R/A
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Tray
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：8
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.081" (2.05mm)
• Locking Feature：Flip Lock
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Liquid Crystal Polymer (LCP)
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：250V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 1775333-8
