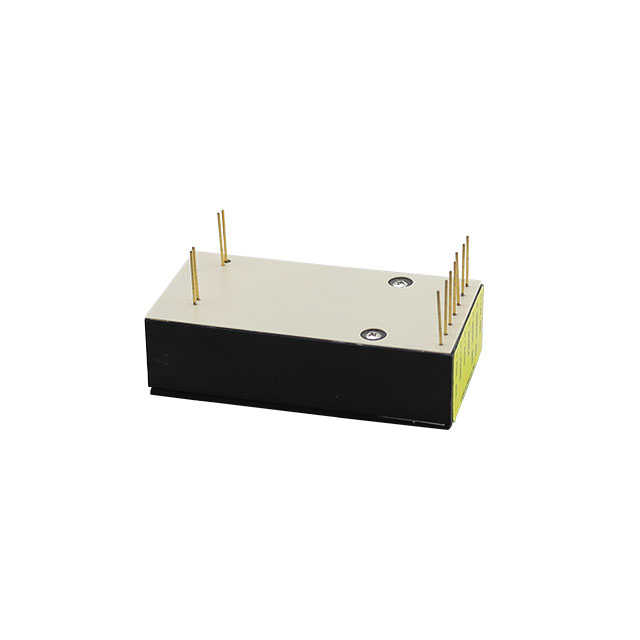

1AA24-P30

1AA24-P30 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ULTRAVOLT / Advanced Energy. Its product description is AA-SERIES DC TO HVDC CONVERTER,. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 1AA24-P30

• Description：AA-SERIES DC TO HVDC CONVERTER,
• Series：UltraVolt® AA
• Mfr：ULTRAVOLT / Advanced Energy
• Package：Bulk
• Type：High Voltage - Non-Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：23V
• Voltage - Input (Max)：30V
• Voltage - Output 1：0 ~ 1000V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30mA
• Power (Watts)：30 W
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 65°C
• Efficiency：-
• Mounting Type：Through Hole
• Package / Case：11-DIP Module
• Size / Dimension：2.97" L x 1.50" W x 0.81" H (75.4mm x 38.1mm x 20.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cUL, cURus, UL
• Standard Number：-
• Grade：-
• Qualification：-
