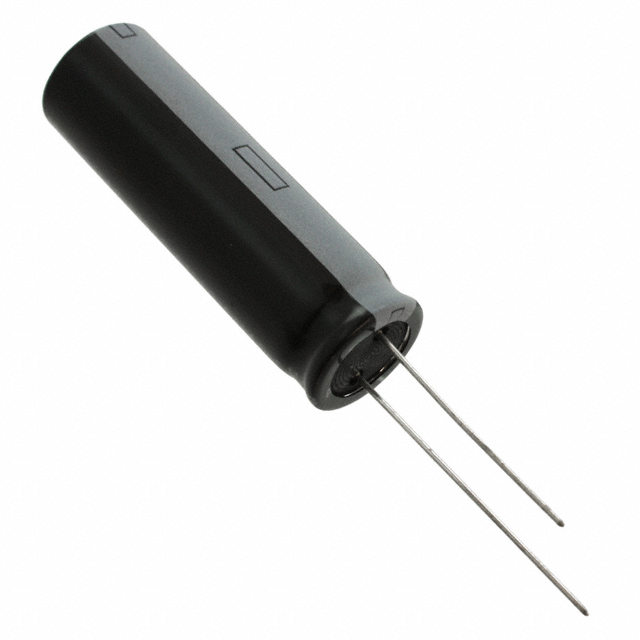

200KXW220MEFC12.5X40

200KXW220MEFC12.5X40 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Rubycon. Its product description is CAP ALUM 220UF 20% 200V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for 200KXW220MEFC12.5X40

• Description：CAP ALUM 220UF 20% 200V RADIAL
• Series：KXW
• Mfr：Rubycon
• Package：Bulk
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：200 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：800 mA @ 120 Hz
• Ripple Current @ High Frequency：1.12 A @ 10 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.492" Dia (12.50mm)
• Height - Seated (Max)：1.654" (42.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for 200KXW220MEFC12.5X40
