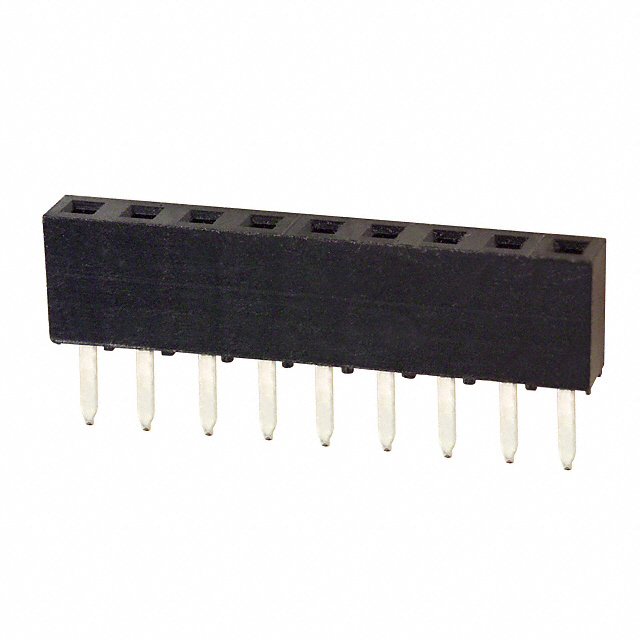

2063-09-01-P2

2063-09-01-P2 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists NorComp Inc.. Its product description is CONN RCPT 9POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2063-09-01-P2

• Description：CONN RCPT 9POS 0.079 GOLD PCB
• Series：2063
• Mfr：NorComp Inc.
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：-
• Number of Positions：9
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Insulation Color：Black
• Insulation Height：0.177" (4.50mm)
• Contact Length - Post：0.118" (3.00mm)
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 2063-09-01-P2
