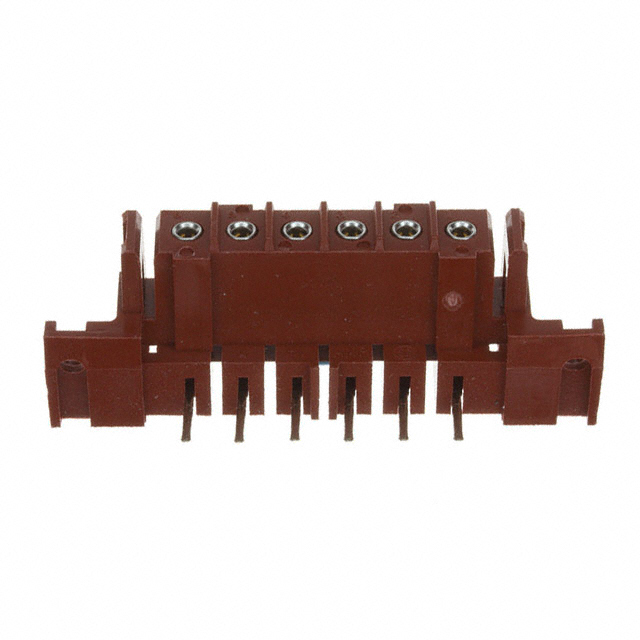

207610-3

207610-3 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HDR 6POS 0.197 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 207610-3

• Description：CONN HDR 6POS 0.197 GOLD PCB R/A
• Series：Metrimate
• Mfr：TE Connectivity AMP Connectors
• Package：Tray
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.197" (5.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Red
• Insulation Height：0.433" (11.00mm)
• Contact Length - Post：0.186" (4.72mm)
• Operating Temperature：-55°C ~ 130°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Mounting Flange
• Current Rating (Amps)：7.5A
• Voltage Rating：600V

Headers, Receptacles, Female Sockets datasheet and documents for 207610-3
