Headers, Receptacles, Female Sockets Overview

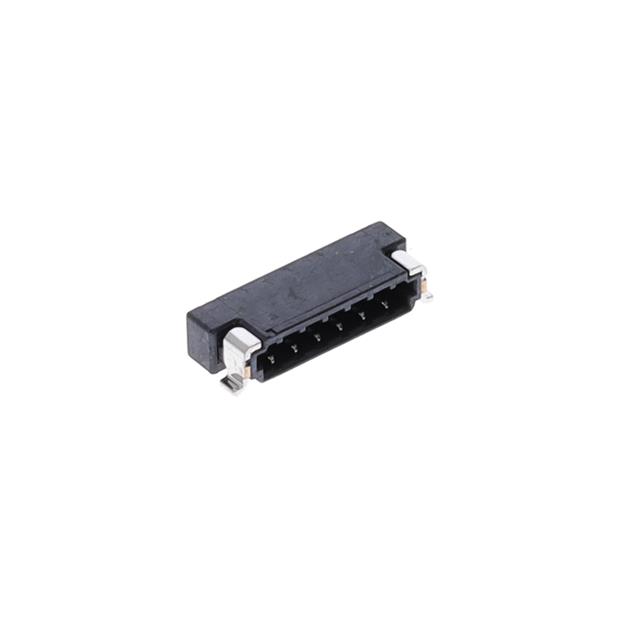

The Molex 214721-0060 is a Zero-Hachi series pin header connector designed for wire-to-board applications. It features a 0.80mm pitch with six contacts arranged in a single row. The component utilizes a surface mount right-angle configuration, allowing for compact PCB integration. The contacts are plated with matte tin to ensure reliable conductivity and corrosion resistance. Constructed with liquid crystal polymer insulation and copper alloy contacts, it supports a friction lock mechanism for secure mating. This part is supplied in tape and reel packaging for automated assembly processes.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi series design optimized for high-density interconnects
• Surface mount right-angle orientation for space-constrained layouts
• Matte tin plating on contacts for enhanced durability
• Liquid crystal polymer insulation material for thermal stability

Headers, Receptacles, Female Sockets Applications

• Consumer electronics requiring miniaturized connections
• Data communication equipment interfaces
• Industrial control system signal routing
• Automotive infotainment and sensor modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm contact plating and packaging type. Ensure the procurement channel is an authorized distributor to guarantee authenticity. Check for RoHS compliance status relevant to your target market regulations. Confirm that the surface mount footprint matches your PCB design guidelines before finalizing orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for tight spaces. The 0.80mm pitch allows for higher density compared to standard 2.54mm headers. Consider the surface mount technology requirements of your assembly line. Evaluate the thermal performance of the LCP material against your operating environment. Ensure the mating connector matches the Zero-Hachi series specifications.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Zero-Hachi family, which focuses on miniature interconnect solutions. The series is engineered for applications demanding small form factors and reliable signal transmission. Molex designs these connectors to meet the increasing miniaturization trends in modern electronic devices. The product line emphasizes precision engineering and consistent electrical performance across various industrial sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Generic alternatives may exist but require rigorous validation of pitch, height, and locking mechanisms. Verify mechanical compatibility and electrical ratings before considering any cross-reference options.

Headers, Receptacles, Female Sockets FAQ

What is the contact plating material for this connector?

The contacts are plated with matte tin (Sn) to provide reliable conductivity and protection against oxidation.

Does this connector include a locking mechanism?

Yes, the Zero-Hachi header features a friction lock design to secure the mating connector in place.

What is the recommended mounting method for this part?

It is designed for surface mount technology (SMT) with a right-angle orientation for vertical PCB insertion.
