2147210100

Headers, Receptacles, Female Sockets Overview

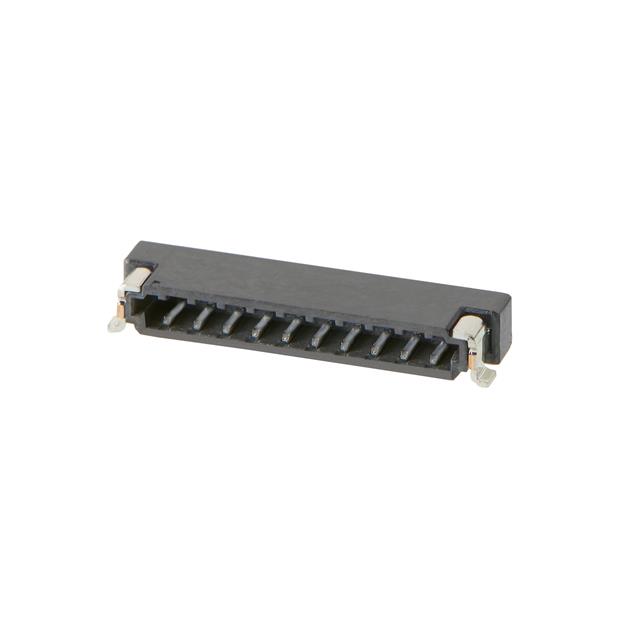

The Molex 2147210100 is a Zero-Hachi series header connector featuring a 0.80mm pitch and 10 positions. It utilizes surface mount right-angle termination with matte tin plating on contacts and posts. The connector employs a friction lock mechanism for secure mating and includes fixed solder tails. Constructed from liquid crystal polymer (LCP) insulation, it supports a rated current of 1A at 30V. Operating temperature ranges from -40°C to +85°C, with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi system designed for high-density board-to-board or board-to-cable connections
• Right-angle surface mount orientation facilitates compact PCB layout integration
• Friction lock mechanism ensures positive retention during mating cycles
• Matte tin plating provides reliable contact interface and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment interconnects
• General purpose electronic assemblies requiring high density
• Board-to-cable wiring applications in consumer electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm exact plating thickness, packaging quantity, and reel specifications. Ensure compatibility with mating receptacles within the same Zero-Hachi family. Confirm that the surface mount footprint matches the recommended land pattern provided in the product drawing. Validate that the operating environment remains within the specified temperature range for LCP material stability.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 0.80mm pitch header is required for space-constrained designs. The right-angle configuration is suitable for vertical stacking or edge connections. Consider the 10-position count and single-row format for circuit density requirements. Verify that the friction lock feature meets the mechanical retention needs of the assembly without additional locking hardware.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex Zero-Hachi 214721 series, characterized by its ultra-fine 0.80mm pitch. The series offers various configurations including straight and right-angle headers with different position counts. It is engineered for applications demanding high I/O density in minimal board area, serving as a critical interconnect solution in modern compact electronic devices.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 0.80mm pitch, 10-position count, right-angle SMD form factor, and friction lock style. Verify pinout compatibility and mechanical dimensions before substitution. Generic headers with different pitches or locking mechanisms are not interchangeable.
