2147210200

Headers, Receptacles, Female Sockets Overview

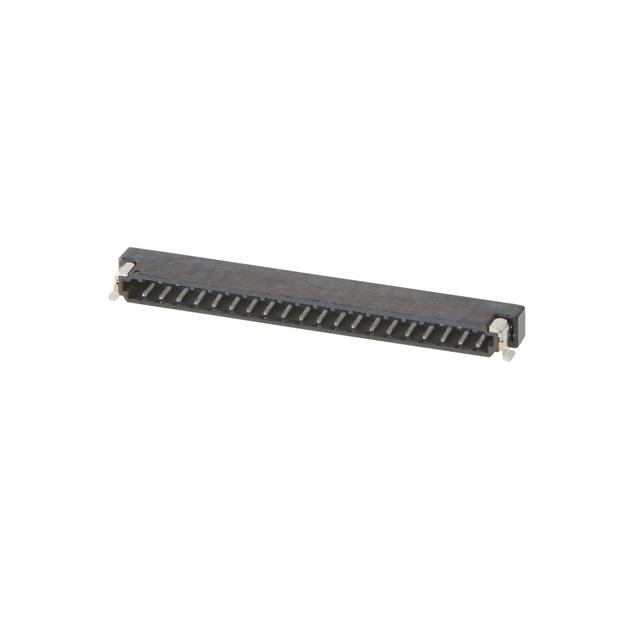

The Molex 2147210200 is a Zero-Hachi header connector featuring a 0.80mm pitch and 20 circuits in a single row configuration. Designed for surface mount applications, it utilizes a right-angle orientation to facilitate compact PCB layouts. The contacts are constructed from copper alloy with a matte tin plating to ensure reliable signal transmission. This component operates within a standard temperature range and includes friction lock features for secure mating.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi series design optimized for high-density interconnects
• Surface mount termination method for automated assembly
• Right-angle entry profile for space-constrained board arrangements
• Friction lock mechanism ensures stable connection integrity

Headers, Receptacles, Female Sockets Applications

• Consumer electronics requiring miniaturized connections
• Data communication equipment interfaces
• Industrial control system PCB assemblies
• Automotive infotainment module linkages

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm exact plating thickness and reel packaging specifications. Ensure compatibility with mating receptacles from the same Zero-Hachi family. Confirm that the surface mount footprint matches the target PCB design guidelines before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when board density requires a 0.80mm pitch interface. The right-angle surface mount style is ideal for vertical stacking or limited lateral space. Verify current carrying capacity requirements against the copper alloy contact specifications. Ensure the operating environment falls within the standard commercial temperature limits defined for this series.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Zero-Hachi product line, which focuses on miniature interconnect solutions for portable and dense electronic devices. The series supports various circuit counts and mounting styles. It complements Molex's broader portfolio of headers and wire housings designed for high-reliability applications in shrinking form factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain the 0.80mm pitch, 20-position count, and right-angle surface mount configuration. Verify pinout compatibility and mechanical locking features. Cross-reference with other manufacturers offering equivalent micro-headers only if dimensional and electrical parameters match exactly.
