Headers, Receptacles, Female Sockets Overview

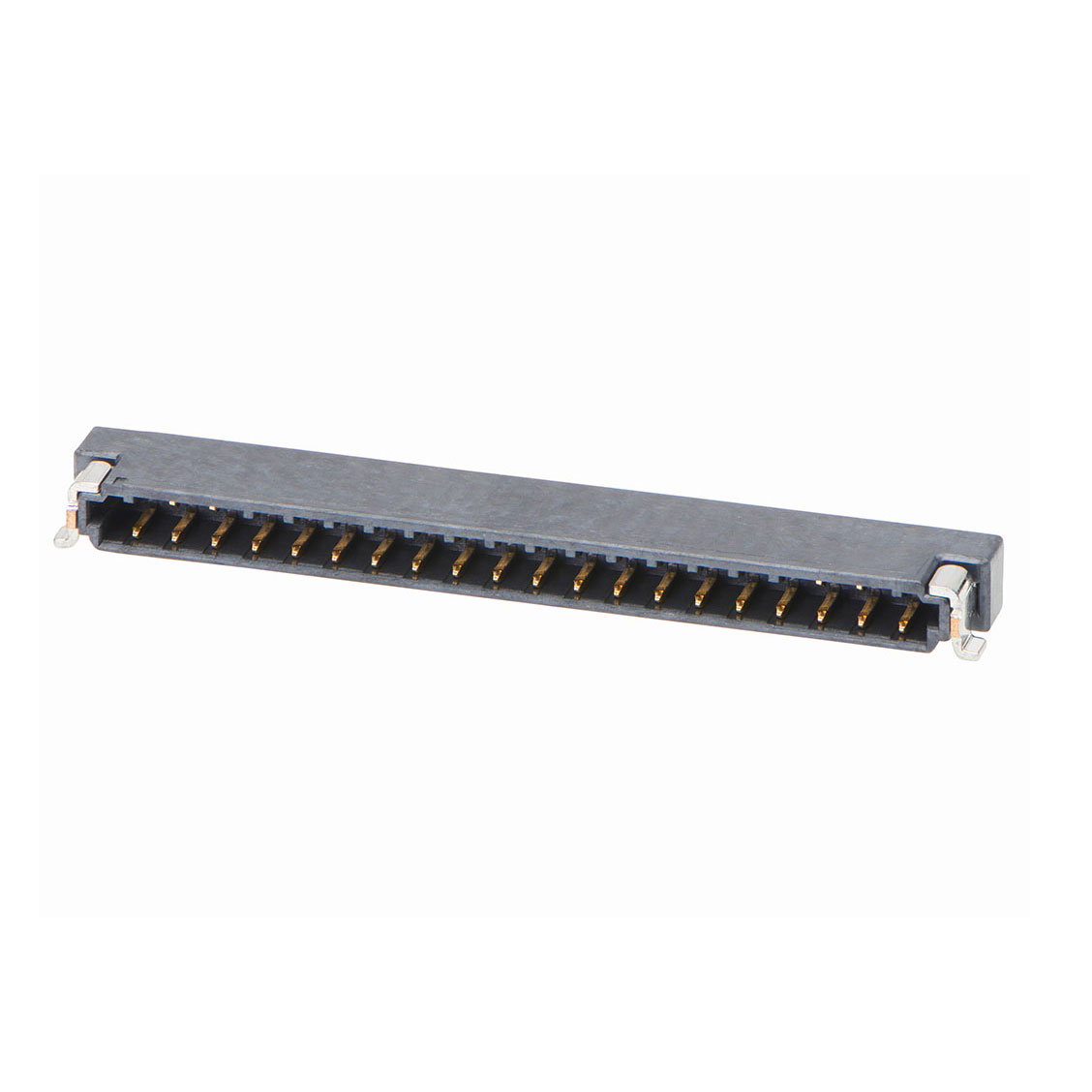

The Molex 2147210201 is a Zero-Hachi series PCB header featuring 20 positions with a 0.80mm pitch. It utilizes a surface mount, right-angle design for efficient board space utilization. The connector employs friction lock latching and gold plating on mating surfaces. Rated for 30V and -40°C to +85°C, it supports wire-to-board signal applications.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi series shrouded header with four-sided enclosure
• Surface mount right-angle termination for compact assembly
• Friction lock latching mechanism secures mating connections
• Gold-plated contacts ensure reliable signal transmission

Headers, Receptacles, Female Sockets Applications

• Wire-to-board signal interconnects
• Telecommunications equipment
• General-purpose electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Molex documentation to confirm configuration details. Ensure compatibility with mating receptacles within the Zero-Hachi family. Check environmental compliance declarations such as EU RoHS and REACH status before integration into final products.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for high-density applications requiring a 0.80mm pitch. The right-angle surface mount style suits boards needing vertical clearance reduction. Confirm that the 30V rating and current capacity meet circuit requirements. Validate mechanical fit within the designated PCB footprint area.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Zero-Hachi family, designed for miniaturization in portable electronics. The 214721 series offers robust mechanical stability with shrouded housing. It provides a reliable solution for modern devices demanding small form factors and secure electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 20-position Zero-Hachi headers with identical 0.80mm pitch and right-angle surface mount configurations. Verify pinout orientation and latching type match when considering alternative manufacturers or variants.
