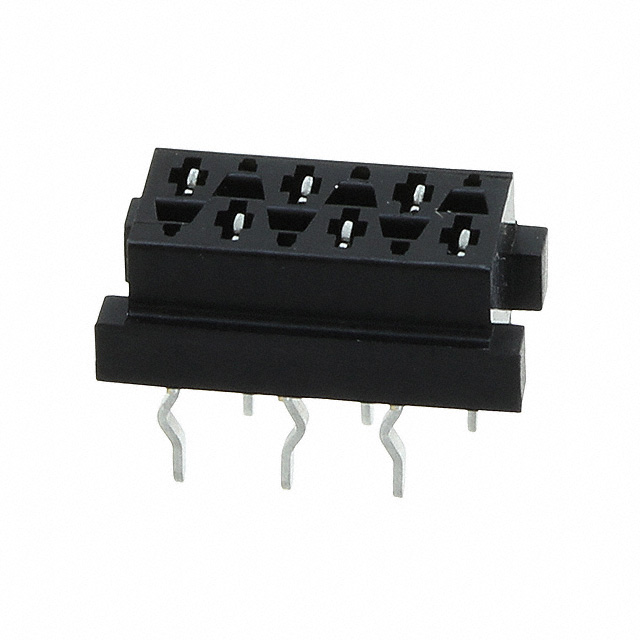

2178710-6

2178710-6 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT 6POS 0.1 TIN PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2178710-6

• Description：CONN RCPT 6POS 0.1 TIN PCB
• Series：Micro-MaTch
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board or Cable
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：118.1µin (3.00µm)
• Insulation Color：Black
• Insulation Height：0.157" (4.00mm)
• Contact Length - Post：0.122" (3.10mm)
• Operating Temperature：-30°C ~ 85°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：100VDC

Headers, Receptacles, Female Sockets datasheet and documents for 2178710-6
