22022165

Headers, Receptacles, Female Sockets Overview

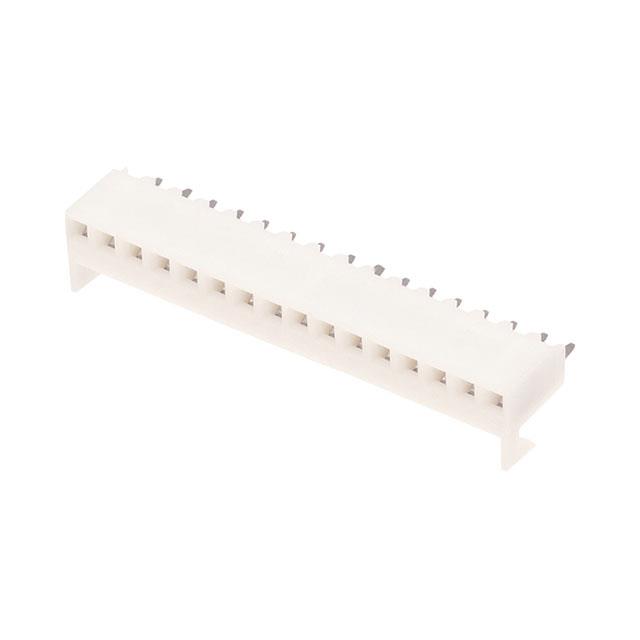

Molex part number 22022165 is a KK 254 series printed circuit board connector receptacle. It features a 16-position configuration with a 0.100 inch (2.54 mm) pin spacing. The component utilizes through-hole mounting technology and includes top entry design characteristics. Electrical specifications include tin plating on contact surfaces to ensure reliable conductivity. The connector supports end-to-end stacking capabilities for multi-row applications. Mechanical hooks are integrated into the housing structure to facilitate secure mating with corresponding header components.

Headers, Receptacles, Female Sockets Feature Summary

• Top entry receptacle design for PCB integration
• End-to-end stackable construction for multi-row assembly
• Integrated mechanical hooks for secure mating retention

Headers, Receptacles, Female Sockets Applications

• General purpose electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics internal wiring harnesses

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches Molex part number 22022165 exactly, as similar KK 254 variants exist with different position counts or plating options. Confirm compatibility with standard 0.100 inch pitch headers. Ensure procurement channels provide original manufacturer documentation to validate authenticity and traceability of the tin-plated contacts and housing material specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 16-position through-hole receptacle with 2.54 mm spacing is required. The top entry orientation and stacking capability make it suitable for dense PCB layouts. Tin plating offers general corrosion resistance. Verify that the application environment does not require gold plating for high-cycle switching or extreme corrosion conditions. Ensure the PCB footprint matches the standard KK 254 series dimensions.

Headers, Receptacles, Female Sockets Part Context

The 22022165 belongs to the widely used KK 254 family of connectors from Molex. This series is characterized by its 0.100 inch pitch and versatile mounting options. The 22022165 specifically denotes the 16-position variant within this extensive lineup. It serves as a standard interface solution in various commercial and industrial sectors requiring reliable point-to-point connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 16-position KK 254 receptacles from Molex or equivalent third-party manufacturers offering identical 2.54 mm pitch and through-hole mounting. Ensure replacement parts maintain the same top entry orientation and hook retention mechanism. Verify that alternative sources provide matching tin plating specifications and physical dimensions for direct interchangeability.
