Headers, Receptacles, Female Sockets Overview

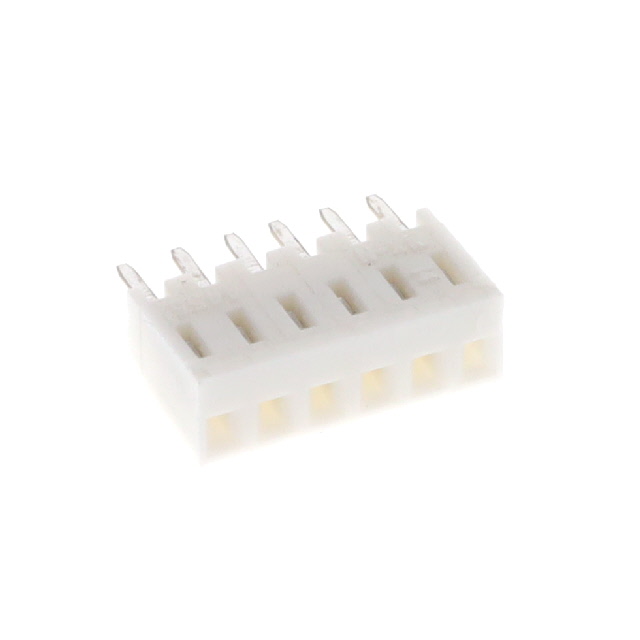

The Molex 22027063 is a KK 254 PC Board Connector designed for top entry and end-to-end stackable applications. It features cat ear terminals with 2.54µm tin (Sn) plating to ensure reliable electrical connections. The component supports 6 circuits and is manufactured without hooks, providing a compact solution for PCB integration.

Headers, Receptacles, Female Sockets Feature Summary

• Top entry configuration for flexible board mounting
• End-to-end stackable design for space efficiency
• Cat ear terminal structure for secure retention

Headers, Receptacles, Female Sockets Applications

• PCB header assemblies requiring top entry access
• Stackable electronic module interconnections
• Compact circuit board signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm terminal plating and contact count. Ensure the selected variant matches the required 6-circuit configuration and stackability needs for your assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when top-entry accessibility and end-to-end stacking are required for 6-circuit applications. The tin-plated cat ear terminals offer a cost-effective solution for standard PCB headers where high corrosion resistance is not the primary constraint.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the KK 254 series, a widely used line of board-to-board connectors known for their 2.54mm pitch. The series provides versatile options for various circuit counts and termination styles, supporting diverse industrial and consumer electronics designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Molex replacement guide for direct equivalents. Verify that any substitute maintains the 2.54mm pitch, 6-circuit count, and top-entry stackable form factor to ensure mechanical compatibility.
