22152026

Headers, Receptacles, Female Sockets Overview

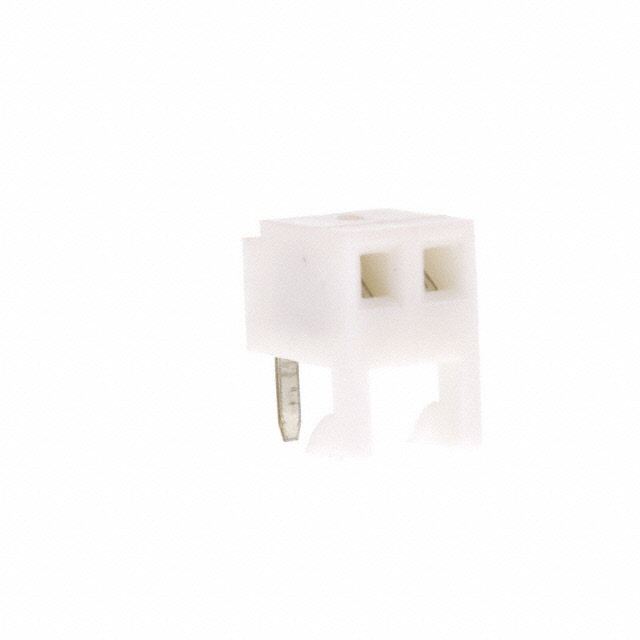

The Molex 22-15-2026 is a 2-position receptacle connector designed for board edge applications with right-angle through-hole termination. It features a 0.100 inch (2.54mm) pitch and utilizes tin plating on the contacts. The housing incorporates offset header entry holes to provide polarization, allowing both power and signal transmission through the same unit. This component is engineered for reliable interconnection in electronic assemblies requiring secure board-to-board or cable-to-board interfaces.

Headers, Receptacles, Female Sockets Feature Summary

• Offset header entry holes enable positive polarization
• Supports simultaneous power and signal transmission within a single housing
• Right-angle through-hole termination for board edge mounting

Headers, Receptacles, Female Sockets Applications

• Board edge interconnections
• Power and signal distribution modules
• Electronic equipment internal wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to ensure correct contact plating and housing material specifications. Confirm that the pin count matches the required circuit design. Check for any environmental certifications required by the target application. Ensure compatibility with mating header components regarding polarization keys and pitch dimensions before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle, through-hole receptacle is required for board edge applications. The 2.54mm pitch suits standard density requirements. Verify that the polarization feature aligns with assembly orientation needs. Consider the operating temperature range and flammability rating relative to the PCB environment. Ensure the current carrying capacity meets the system's electrical load requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex 22 series of connectors, which are widely used in various industrial and consumer electronics. The 22-15 series specifically focuses on board edge connectors, offering robust mechanical retention and reliable electrical performance. These connectors are part of Molex's broader portfolio of high-reliability interconnect solutions designed for demanding environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Molex's official cross-reference tools or authorized distributors for compatible alternatives. Ensure any replacement maintains identical pitch, polarization, and termination style specifications.
