Headers, Receptacles, Female Sockets Overview

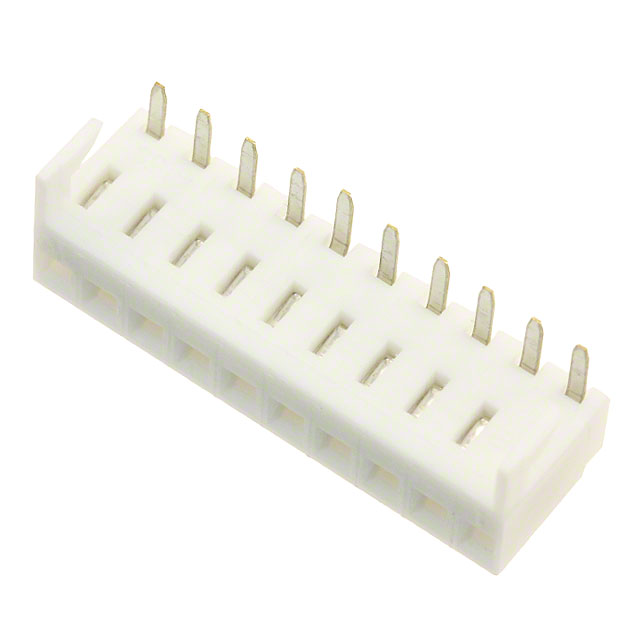

Molex part number 22-15-2106 is a 10-position receptacle connector designed for board edge and through-hole mounting. It features right-angle orientation with a 0.100-inch (2.54mm) pitch. The contacts are tin-plated to ensure reliable electrical performance. This component serves as a female socket interface, integrating offset header entry holes that provide polarization capabilities up to +180°C. The design allows both power and signal transmission through the same housing structure.

Headers, Receptacles, Female Sockets Feature Summary

• Integrates offset header entry holes for polarization
• Supports combined power and signal transmission in a single housing
• Features right-angle orientation for board edge applications

Headers, Receptacles, Female Sockets Applications

• Board edge connections
• Through-hole mounting interfaces
• Power and signal distribution systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Molex or authorized distributors before procurement. Confirm that the tin plating specification meets your environmental requirements. Ensure the right-angle form factor aligns with your PCB layout constraints. Cross-reference the 10-position count and 2.54mm pitch against your schematic to prevent integration errors during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle, through-hole receptacle is required for board edge insertion. The 10-position configuration suits applications needing moderate density. The offset entry hole feature is critical if polarization is necessary to prevent mating errors. Tin plating offers standard conductivity; consider alternative finishes only if specific corrosion resistance is mandated by the operating environment.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to Molex's broader connector family designed for robust electronic interconnections. It complements matching header housings and contact sets to form complete connector assemblies. The product line emphasizes reliability in mixed-signal environments where power and data lines share a common physical interface point on the printed circuit board.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical compatibility and pinout definitions before considering any alternative connectors from other manufacturers or different series within the same brand.
